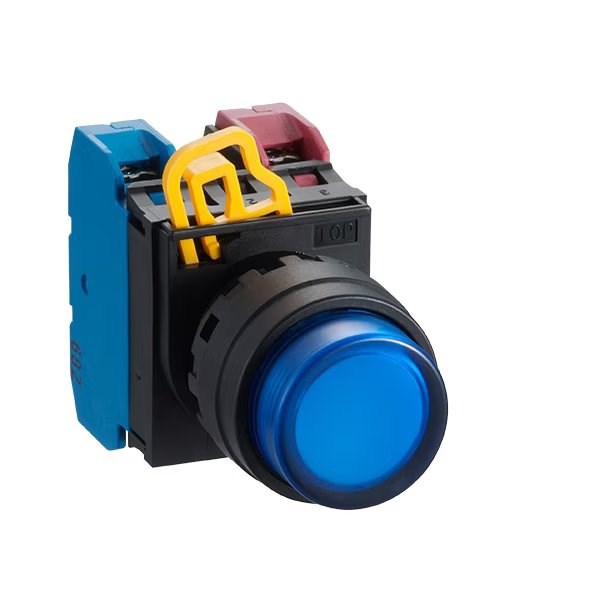

IDEC YW1L-M2E10Q0A Illuminated Pushbutton 1NO+0NC

Product Code: YW1L-M2E10Q0A

  • Illuminated momentary pushbutton for easy operation
  • Rated voltage: 250 VAC/DC with 10 A current capacity
  • Robust IP65 front protection, ideal for harsh environments
  • Durable mechanical life of up to 0.25M operations
  • cULus listed, CE Marked, UKCA & CCC certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton
Brand
IDEC
Series
YW

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
1
Terminal Type
Finger Safe Spring Terminal
Contact Block Thermal Current (Ith)
10:00 AM
Contact Block Rated Current (Ie)
AC-12: (380 V) 2 A, (240 V) 6 A, (120 V) 10 A, (24 V) 10 AAC-15: (380 V) 1.9 A, (240 V) 3 A, (120 V) 6 A, (24 V) 10 ADC-12: (24 V) 8 A, (120 V) 2.2 A, (240 V) 1.1 ADC-13: (24 V) 4 A, (120 V) 1.1 A, (240 V) 0.55 A

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Amber
Lens Colour
Amber
Switching Function
Momentary

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
