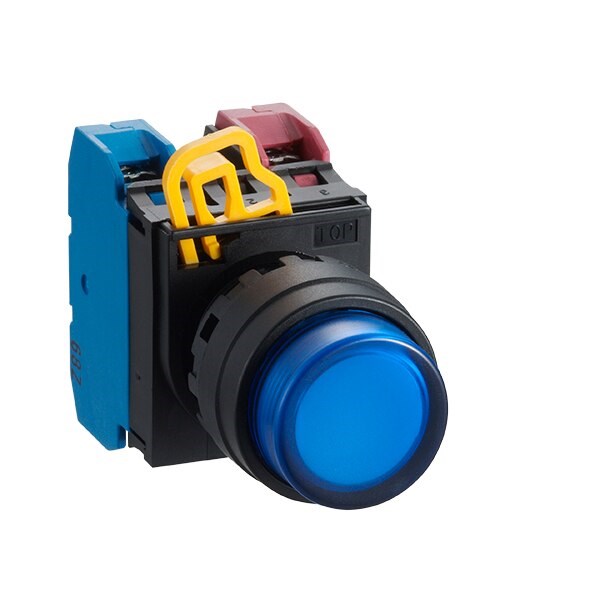

IDEC YW1L-M2E01Q4S Illuminated Pushbutton 0NO+1NC

Product Code: YW1L-M2E01Q4S

  • Illuminated pushbutton with built-in blue LED
  • IP65 front protection for dust and water resistance
  • Operates in temperatures from -20 to 55°C
  • Durable with up to 0.25M operations (single contact)
  • cULus, CE, UKCA, CCC certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton
Brand
IDEC
Series
YW

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
0
Terminal Type
Finger Safe Spring Terminal
Contact Block Thermal Current (Ith)
10:00 AM
Contact Block Rated Current (Ie)
AC-12: (380 V) 2 A, (240 V) 6 A, (120 V) 10 A, (24 V) 10 AAC-15: (380 V) 1.9 A, (240 V) 3 A, (120 V) 6 A, (24 V) 10 ADC-12: (24 V) 8 A, (120 V) 2.2 A, (240 V) 1.1 ADC-13: (24 V) 4 A, (120 V) 1.1 A, (240 V) 0.55 A

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Blue
Lens Colour
Blue
Switching Function
Momentary

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
