Specifications

Product Type

Pushbutton

Brand

IDEC

Series

No. of N/C Contacts 1	No. of N/O Contacts 0	Terminal Type Finger Safe Spring Terminal
Contact Block Thermal Current (Ith) 10:00 AM	Contact Block Rated Current (Ie) AC-12: (380 V) 2 A, (240 V) 6 A, (120 V) 10 A, (24 V) 10 AAC-15: (380 V) 1.9 A, (240 V) 3 A, (120 V) 6 A, (24 V) 10 ADC-12: (24 V) 8 A, (120 V) 2.2 A, (240 V) 1.1 ADC-13: (24 V) 4 A, (120 V) 1.1 A, (240 V) 0.55 A

Actuator Type Extended	Bezel Material Plastic	Lamp Colour Red
Lens Colour Red	Switching Function Momentary

IP Rating

IP65

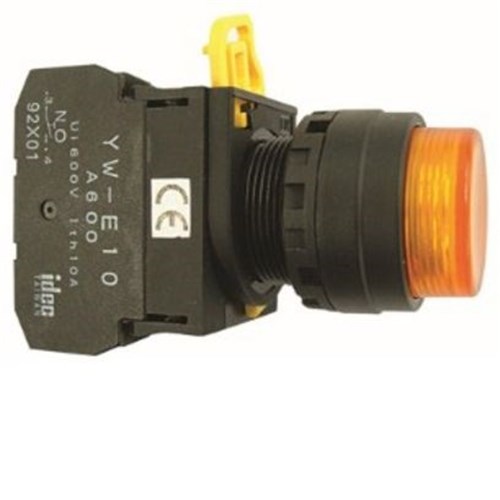

IDEC YW1L-M2E01Q4R Illuminated Pushbutton 0NO+1NC
