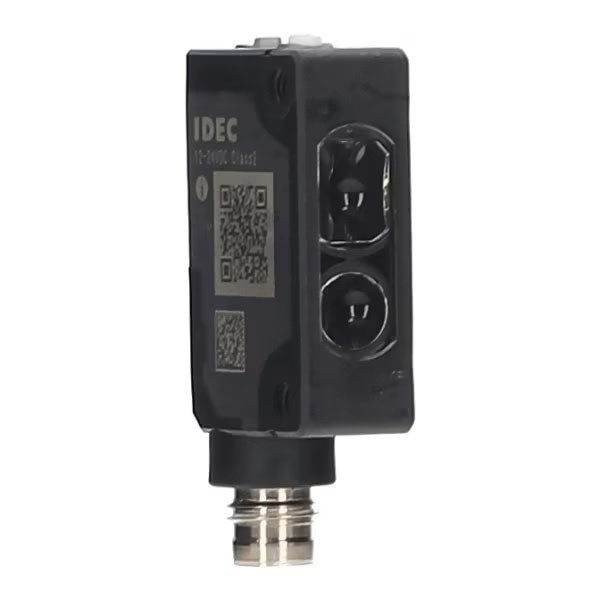

IDEC SA2E-PN3C Miniature Photoelectric Sensor 12-24VDC 5m 3m 2m 1.3m 1.6m Sensing M8 NPN-Output

Product Code: SA2E-PN3C

  • Versatile sensing range up to 5 m
  • Operates on 12-24 VDC with NPN output
  • Durable PBT case, PMMA lens
  • IP67 protection for harsh conditions
  • Quick response time of 0.5 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
IDEC
Series
SA2E

Electrical

Max. Switching Distance
5000mm
Sensing Type
Polarized retro-reflective
Type of Switching Output
NPN open collector
Electrical Connection
M8 connector (4-pin)
Light Source
Red LED
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
PBT (case), PMMA (lens), PC (indicator)

Dimensions & Physical Data

Depth
19.5mm
Height
31.5mm
Width
10.8mm

Environmental

Operating Temperature
-30°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
