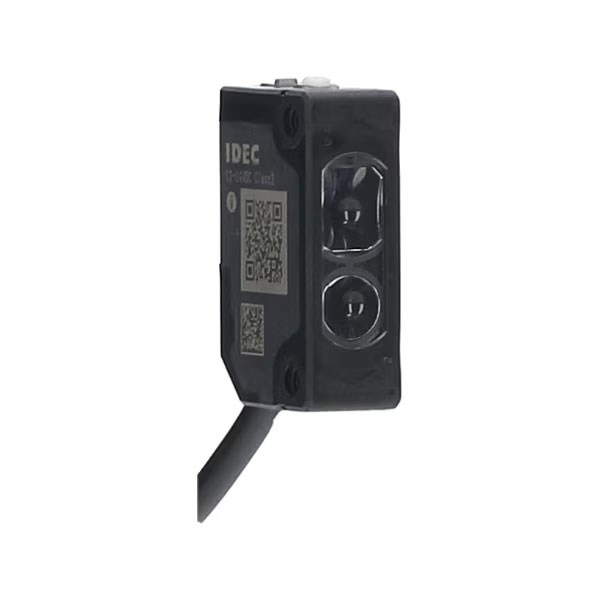

IDEC SA2E-NN3-2M Miniature Photoelectric Sensor 12-24VDC 50-150mm Sensing 2m L Cable NPN-Output

Product Code: SA2E-NN3-2M

  • Sensing range of 50-150 mm
  • Operates on 12-24 VDC, 20 mA current
  • Durable PBT case, IP67 rated
  • Fast response time of 0.5 ms
  • Light/Dark operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
IDEC
Series
SA2E

Electrical

Max. Switching Distance
150mm
Sensing Type
Small-beam reflective
Type of Switching Output
NPN open collector
Electrical Connection
Cable
Light Source
Red LED
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
PBT (case), PMMA (lens), PC (indicator)

Dimensions & Physical Data

Depth
19.5mm
Height
31.5mm
Width
10.8mm
Cable Length
2m

Environmental

Operating Temperature
-30°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
