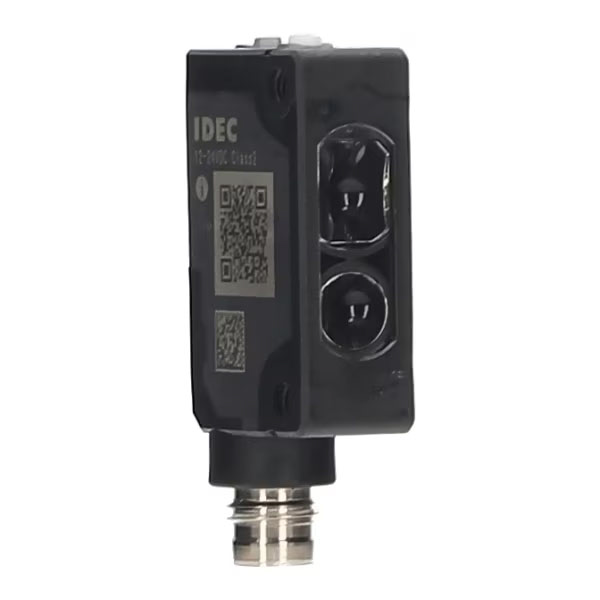

IDEC SA2E-DN3LC Didduse-Reflective Miniature Photoelectric Sensor 12-24VDC 1m Sensing M8 NPN-Output

Product Code: SA2E-DN3LC

  • 1m sensing range for precise detection
  • Operates on 12-24 VDC, 20 mA current
  • NPN output with M8 connector
  • Durable PBT case, PMMA lens
  • IP67 rated for robust protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
IDEC
Series
SA2E

Electrical

Max. Switching Distance
1000mm
Sensing Type
Diffuse-reflective
Type of Switching Output
NPN open collector
Electrical Connection
M8 connector (4-pin)
Light Source
Infrared LED
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
PBT (case), PMMA (lens), PC (indicator)

Dimensions & Physical Data

Depth
19.5mm
Height
31.5mm
Width
10.8mm

Environmental

Operating Temperature
-30°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
