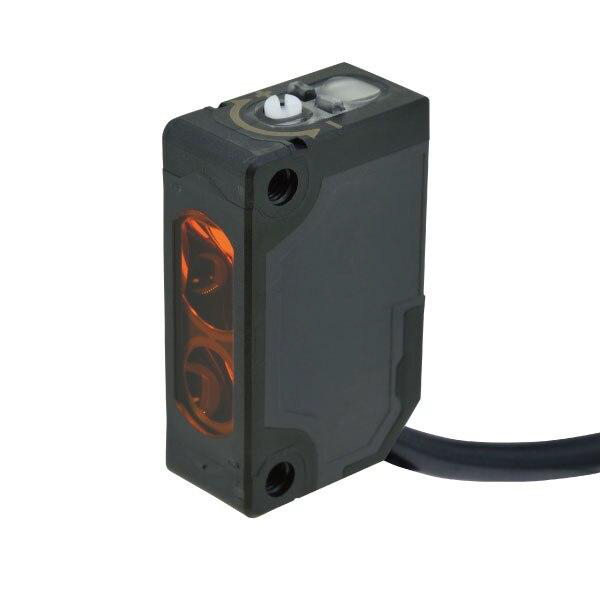

IDEC SA2E-DN3L-2M Didduse-Reflective Miniature Photoelectric Sensor 12-24VDC 1m Sensing 2m L Cable NPN-Output

Product Code: SA2E-DN3L-2M

  • 1 m sensing range for precise detection
  • Operates on 12-24 VDC with 20 mA current
  • Durable PBT case, IP67 rated protection
  • Quick response time of 0.5 ms
  • Infrared LED with Light/Dark ON indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
IDEC
Series
SA2E

Electrical

Max. Switching Distance
1000mm
Sensing Type
Diffuse-reflective
Type of Switching Output
NPN open collector
Electrical Connection
Cable
Light Source
Infrared LED
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
PBT (case), PMMA (lens), PC (indicator)

Dimensions & Physical Data

Depth
19.5mm
Height
31.5mm
Width
10.8mm
Cable Length
2m

Environmental

Operating Temperature
-30°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
