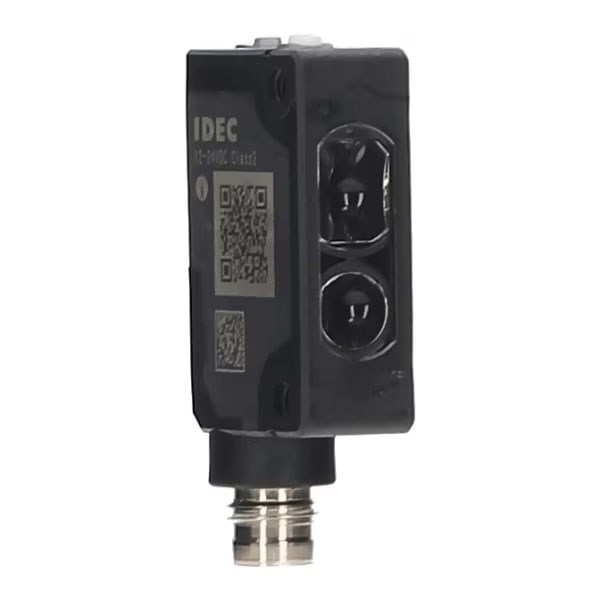

IDEC SA2E-BN3C Miniature Photoelectric Sensor 12-24VDC 10-350mm Sensing M8 NPN-Output Red LED

Product Code: SA2E-BN3C

  • Sensing range of 10-350 mm
  • Operates on 12-24 VDC, 20 mA
  • Durable PBT case with IP67 protection
  • Fast response time of 0.5 ms
  • Light/Dark operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
IDEC
Series
SA2E

Electrical

Max. Switching Distance
350mm
Sensing Type
Background suppression (BGS)
Type of Switching Output
NPN open collector
Electrical Connection
M8 connector (4-pin)
Light Source
Red LED
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
PBT (case), PMMA (lens), PC (indicator)

Dimensions & Physical Data

Depth
19.5mm
Height
31.5mm
Width
10.8mm

Environmental

Operating Temperature
-30°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
