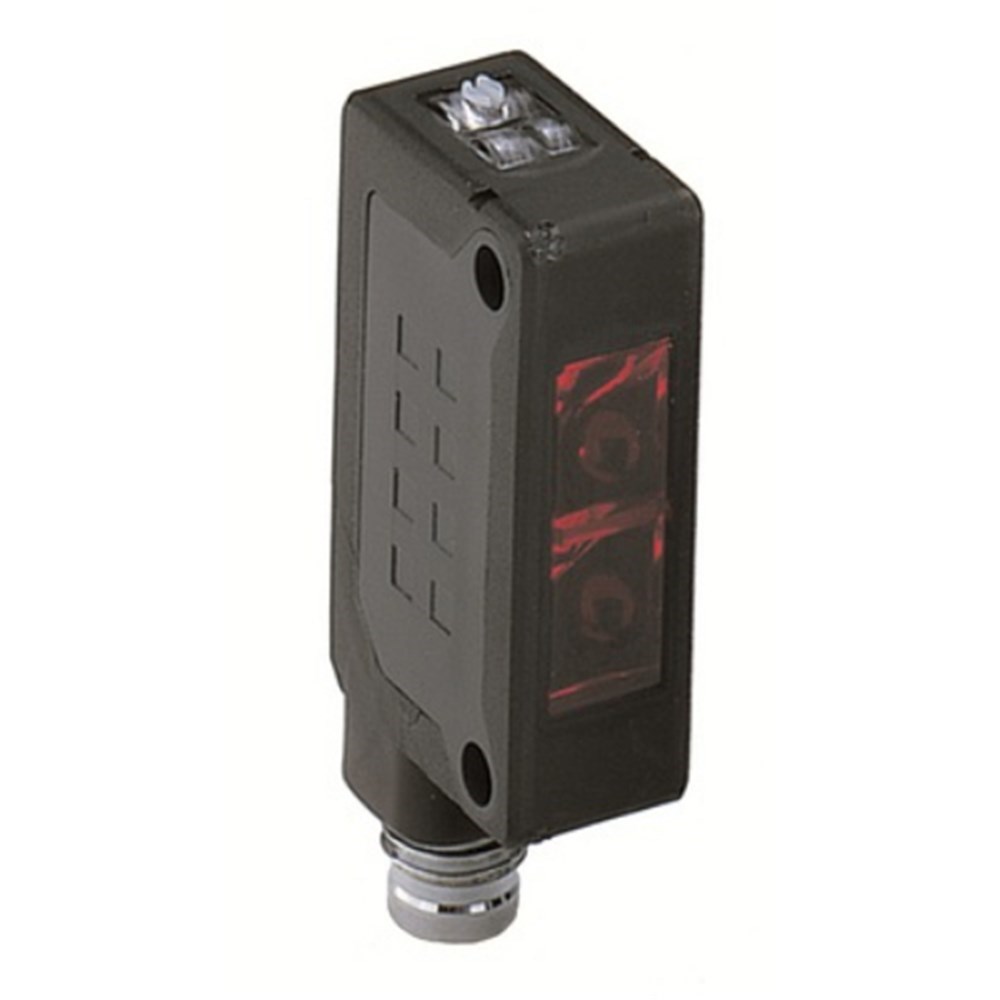

IDEC SA1E-PP1C Miniature Photoelectric Switch 12-24VDC

Product Code: SA1E-PP1C

  • Sensing range up to 2.5m
  • Operates on 12-24 VDC
  • IP67 rated for protection
  • Works in -25 to 55°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric sensor
Brand
IDEC
Series
SA1E

Electrical

Max. Switching Distance
2.5 m
Sensing Type
Polarized retro-reflective
Type of Switching Output
PNP open collector
Electrical Connection
M8 connector (4-pin)
Light Source
Red LED
Rated Voltage
12 to 24 V DC

Mechanical

Material
PC/PBT (housing), PMMA (lens), PC (indicator cover)

Dimensions & Physical Data

Depth
19.5 mm
Height
31.5 mm
Width
10.8 mm

Environmental

Operating Temperature
-25 to 55 degC
IP Rating
IP67

Documents

IPD Product Catalogue V17
