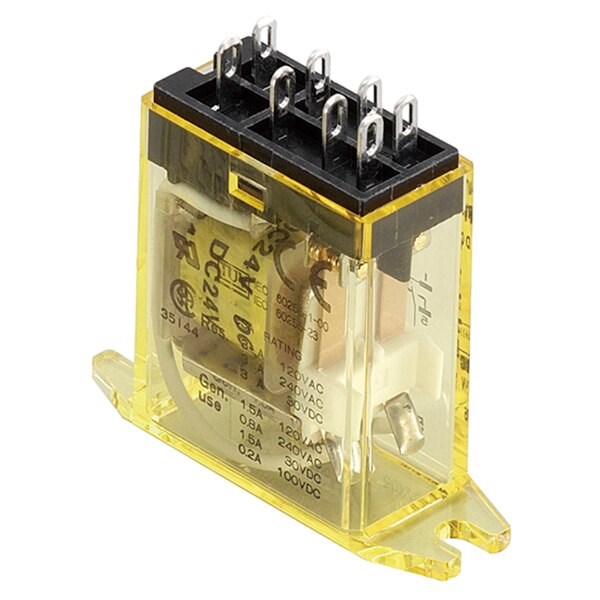

IDEC RY2S-UTAC120V Miniature Relay DPDT 3A

Product Code: RY2S-UTAC120V

  • Rated for 3 A with 120 VAC coil voltage
  • DPDT contacts with gold-plated silver
  • High electrical life: 200,000 operations
  • Robust mechanical life: 5 million ops
  • CE, cRuus, CSA approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
General Purpose Miniature Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
84 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade Terminal
Rated Current (In)
0.125
Rated Voltage (Ur)
120 V AC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)

Dimensions & Physical Data

Depth
35.6 mm
Height
27.5 mm
Width
14 mm

Environmental

Operating Temperature
–25 to +55°C (no freezing)
