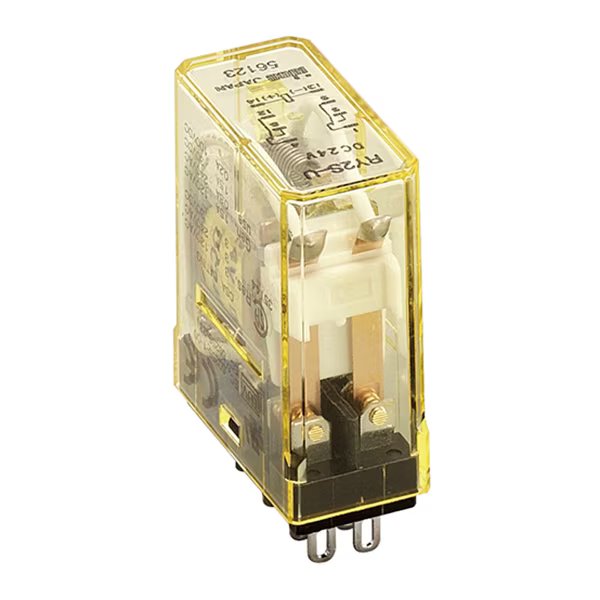

IDEC RY2S-ULD-DC24V Miniature Relay DPDT

Product Code: RY2S-ULD-DC24V

  • Compact miniature design with DPDT contacts
  • Gold plated silver contacts for reliable performance
  • Long electrical life of 200,000 operations
  • High mechanical durability up to 5 million ops
  • CE, cRuus, and CSA certified for safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
General Purpose Miniature Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
16.8 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade Terminal
Rated Current (In)
0.125
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)

Dimensions & Physical Data

Depth
35.6 mm
Height
27.5 mm
Width
14 mm

Environmental

Operating Temperature
–25 to +55°C (no freezing)

Documents

IPD Product Catalogue V17
