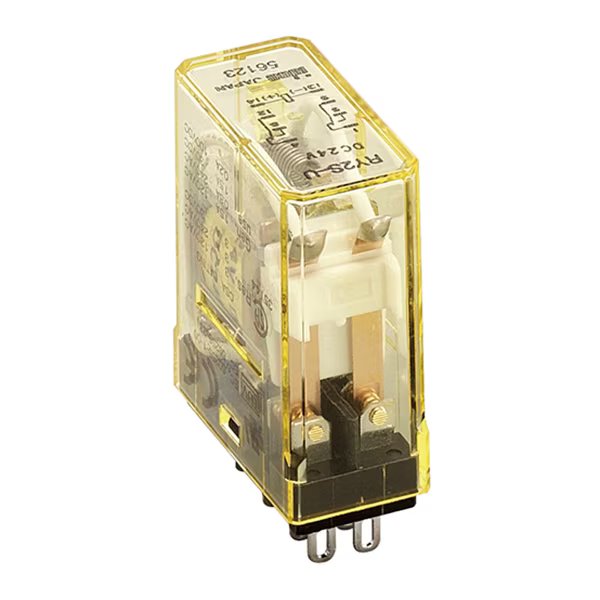

IDEC RY2S-ULAC12V Miniature Relay DPDT

Product Code: RY2S-ULAC12V

  • Miniature size with DPDT contacts
  • Gold plated silver contact material
  • 200,000 electrical operations lifespan
  • High insulation resistance of 100 MOhm
  • CE, cRuus, CSA approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
General Purpose Miniature Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
8.4 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade Terminal
Rated Current (In)
0.125
Rated Voltage (Ur)
12 V AC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)

Dimensions & Physical Data

Depth
35.6 mm
Height
27.5 mm
Width
14 mm

Environmental

Operating Temperature
–25 to +55°C (no freezing)
