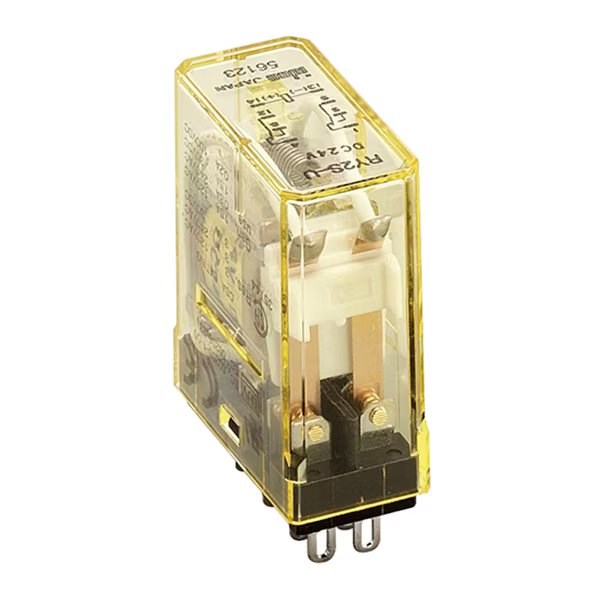

IDEC RY2S-ULAC120V Miniature Relay DPDT 3A

Product Code: RY2S-ULAC120V

  • Compact miniature relay design
  • Rated for 3 A current
  • DPDT contact configuration
  • Gold plated silver contacts
  • Long electrical life: 200k ops
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
General Purpose Miniature Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
84 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade Terminal
Rated Current (In)
0.125
Rated Voltage (Ur)
120 V AC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)

Dimensions & Physical Data

Depth
35.6 mm
Height
27.5 mm
Width
14 mm

Environmental

Operating Temperature
–25 to +55°C (no freezing)
