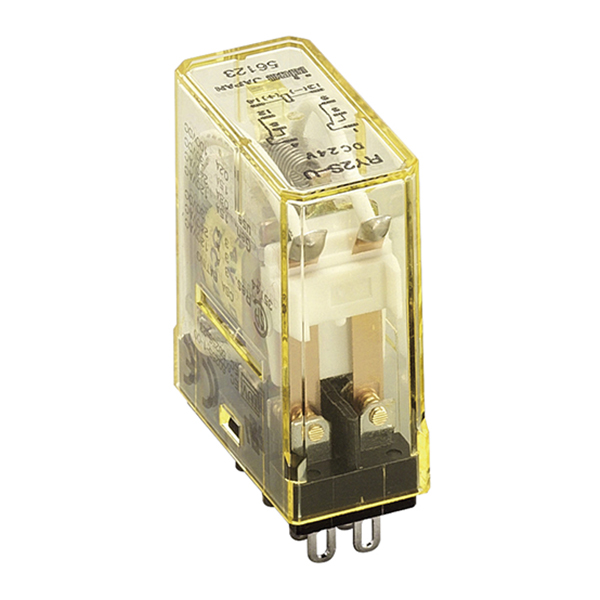

IDEC RY2S-UD-DC24V Miniature Relay DPDT 3A Solder Terminal

Product Code: RY2S-UD-DC24V

  • 3A rated current for versatile applications
  • 24 VDC coil voltage for reliable operation
  • DPDT contact configuration enhances flexibility
  • Gold plated silver contacts ensure durability
  • CE, cRuus, CSA certified for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
General Purpose Miniature Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
16.8 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade Terminal
Rated Current (In)
0.125
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)

Dimensions & Physical Data

Depth
35.6 mm
Height
27.5 mm
Width
14 mm

Environmental

Operating Temperature
–25 to +55°C (no freezing)
