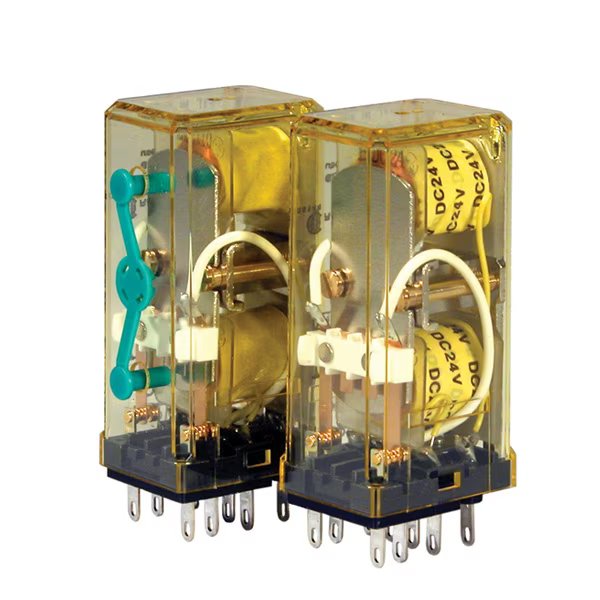

IDEC RY2KS-UCDC24V Latching Relay DPDT 24VDC Coil 3A

Product Code: RY2KS-UCDC24V

  • Latching relay with DPDT contact config.
  • Handles up to 3 A current, 1.2 W power.
  • Reliable gold-plated silver contacts.
  • Long electrical life of 200,000 ops.
  • CSA approved for quality assurance.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Latching Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
19.2 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.125
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
Socket Mounting (DIN Rail, PCB, Through-Panel)

Dimensions & Physical Data

Depth
55.3 mm
Height
27.5 mm
Width
21 mm

Environmental

Operating Temperature
–5 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
