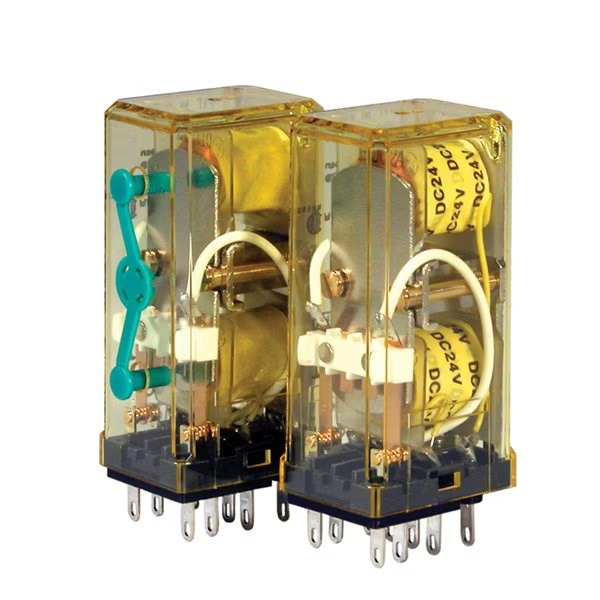

IDEC RY2KS-UCDC110V Latching Relay DPDT 110VDC Coil 0.2A

Product Code: RY2KS-UCDC110V

  • Latching relay with DPDT configuration
  • Gold plated silver contacts for durability
  • Rated current of 0.2 A and power of 1.2 W
  • High electrical life: 200,000 operations
  • Plug-in terminal type for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Latching Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
88 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.125
Rated Voltage (Ur)
110 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
Socket Mounting (DIN Rail, PCB, Through-Panel)

Dimensions & Physical Data

Depth
55.3 mm
Height
27.5 mm
Width
21 mm

Environmental

Operating Temperature
–5 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
