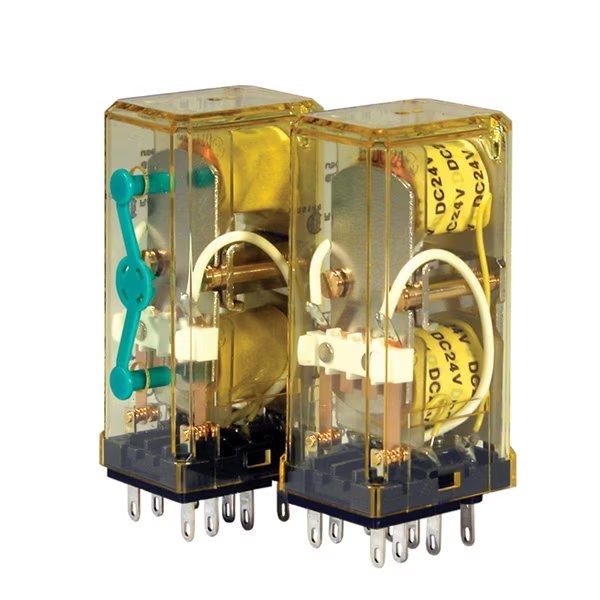

IDEC RY2KS-UAC12 Latching Relay DPDT 12VAC Coil 3A

Product Code: RY2KS-UAC12

  • Latching relay with DPDT contact configuration
  • Rated at 3 A and 1.6 VA power capacity
  • Gold plated silver contacts for durability
  • Long electrical life: 200,000 operations
  • CSA approved for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Latching Relay
Brand
IDEC
Series
RY

Electrical

Actuating Voltage
9.6 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.125
Rated Voltage (Ur)
12 V AC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Gold-plated silver
Mounting
Socket Mounting (DIN Rail, PCB, Through-Panel)

Dimensions & Physical Data

Depth
55.3 mm
Height
27.5 mm
Width
21 mm

Environmental

Operating Temperature
–5 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
