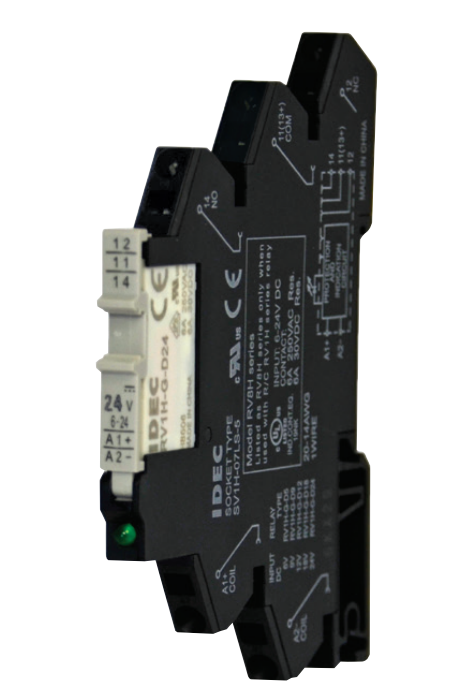

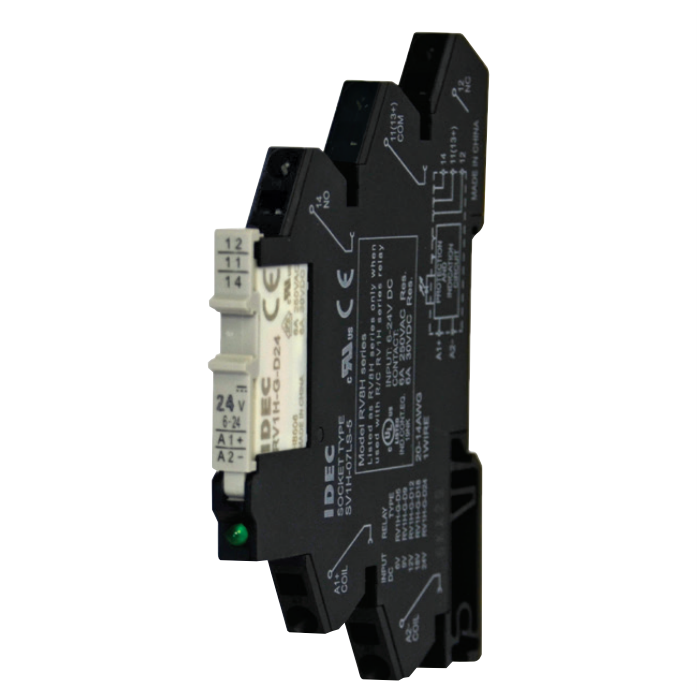

IDEC RV8H-S-D24 Slim Interface Relay 6mm W SPDT Spring Clamp Terminal 24VDC 6A

Product Code: RV8H-S-D24

  • Compact 6mm width for space-saving design
  • SPDT contact configuration for versatile use
  • Spring clamp terminals for easy connection
  • High shock resistance of 980 ms
  • CE, cULus, RoHS certified for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
IDEC
Series
RV

Electrical

Actuating Voltage
21.6 V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Spring Clamp
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
SPDT

Mechanical

Contact Material
AgNi
Mounting
DIN Rail

Dimensions & Physical Data

Depth
74.2 mm
Height
93.4 mm
Width
14 mm

Environmental

Operating Temperature
-40 to +70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
