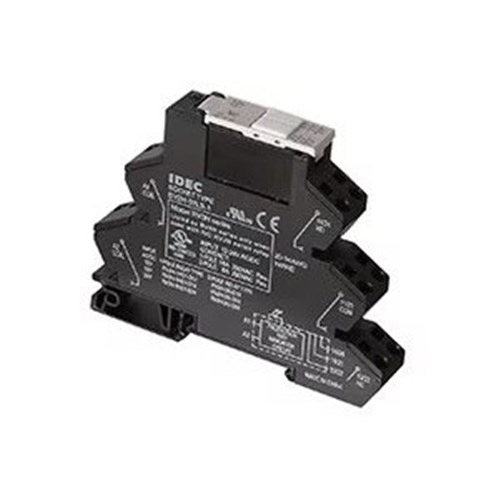

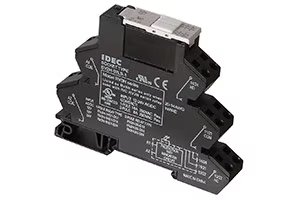

IDEC RV8H-S-AD110 Slim Interface Relay 6mm W Spring Clamp Terminal 110VAC

Product Code: RV8H-S-AD110

  • Compact 6 mm width for space-saving installation
  • Reliable spring clamp terminals
  • Operates at 110 VAC with 0.5 W power
  • High shock resistance of 980 ms
  • Compliant with CE, cULus, RoHS, UL/cUL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
IDEC
Series
RV

Electrical

Actuating Voltage
99 V - 112.5 V
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Spring Clamp
Rated Current (In)
0.25
Rated Voltage (Ur)
110 V - 125 V
Change-Over Contacts
SPDT

Mechanical

Contact Material
AgNi
Mounting
DIN Rail

Dimensions & Physical Data

Depth
74.2 mm
Height
93.4 mm
Width
14 mm

Environmental

Operating Temperature
-40 to +70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
