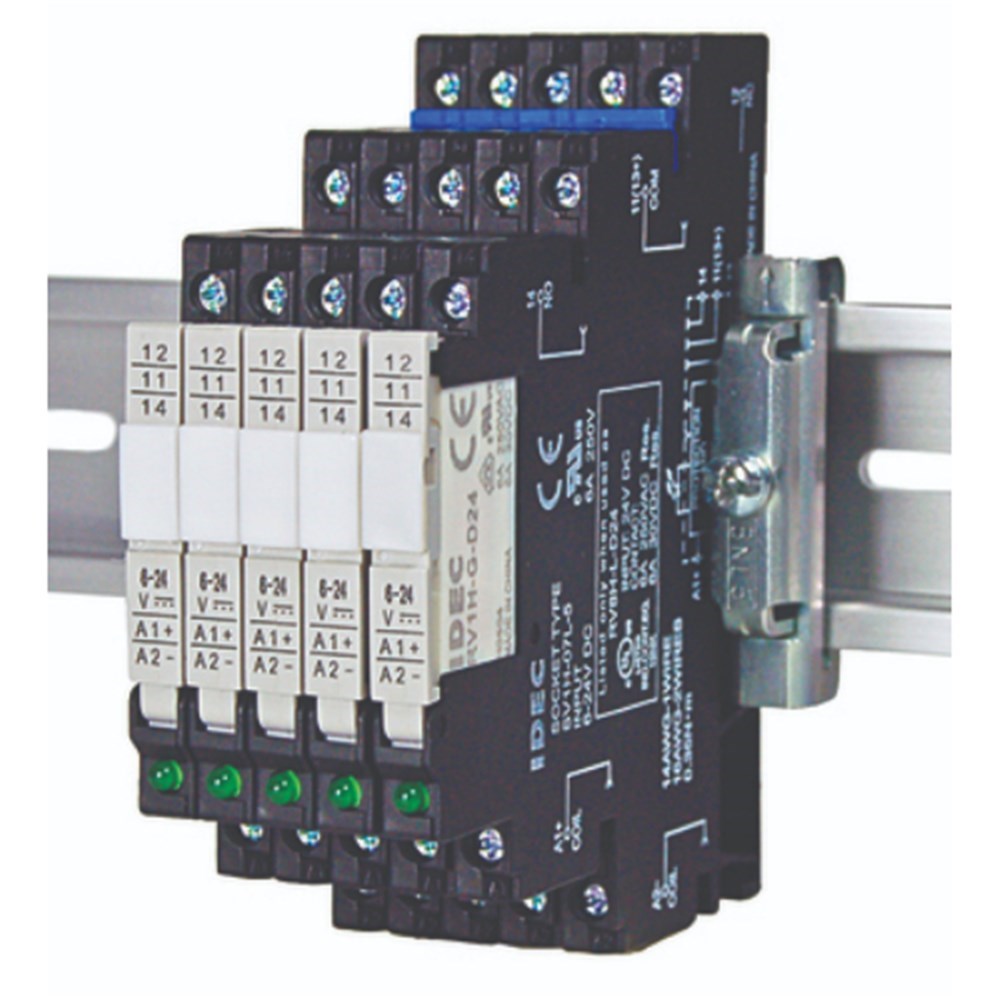

IDEC RV8H-L-AD110 Electromechanical Relay 6mm W SPDT Screw Terminal 110-125VAC/DC 6A

Product Code: RV8H-L-AD110

  • Compact 6 mm DIN Rail mounting
  • SPDT contact configuration
  • Handles 110-125 VAC/VDC, 6 A load
  • Durable AgNi contact material
  • CE, cULus, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
IDEC
Series
RV

Electrical

Actuating Voltage
99 V - 112.5 V
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Screw Terminal
Rated Current (In)
0.25
Rated Voltage (Ur)
110 V - 125 V
Change-Over Contacts
SPDT

Mechanical

Contact Material
AgNi
Mounting
DIN Rail

Dimensions & Physical Data

Depth
74.2 mm
Height
88 mm
Width
14 mm

Environmental

Operating Temperature
-40 to +70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
