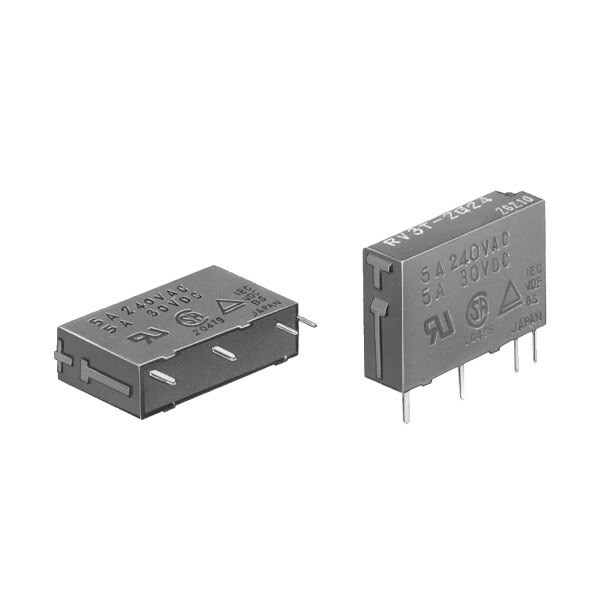

IDEC RV3T-1G05 PCB Terminal Relay 5VDC Coil

Product Code: RV3T-1G05

  • Compact size: 20.3mm x 12.6mm x 5.08mm
  • Long life: 20 million operations
  • Wide temp range: -40 to 70°C
  • High insul. resistance: 100 MOhm
  • CE & UL recognized
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RV3T

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
1
Electrical Connection
PCB Pin Terminal
Rated Current (In)
0.208333
Rated Voltage (Ur)
5 V DC
Change-Over Contacts
SPST-NO

Mechanical

Mounting
PCB

Dimensions & Physical Data

Depth
5.08 mm
Height
16.4 mm
Width
21.3 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)

Documents

IPD Product Catalogue V17
