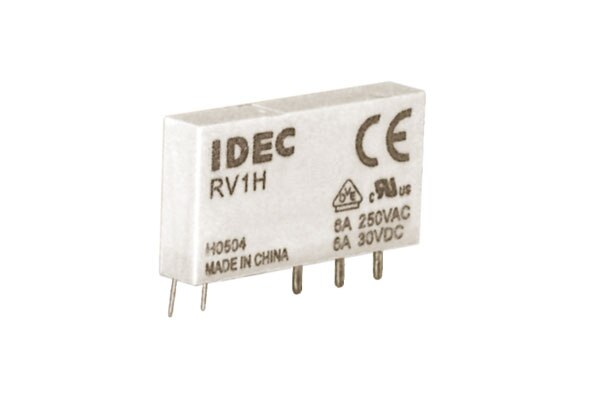

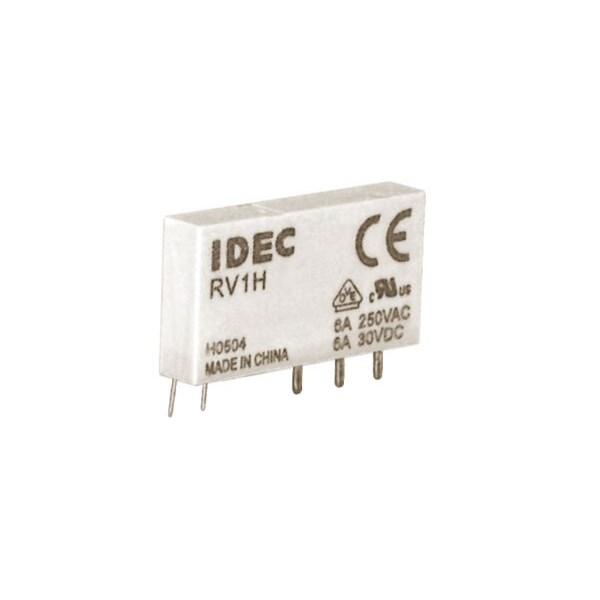

IDEC RV1H-G-D12 PCB Relay SPDT 12VDC Coil DIN Rail Mount

Product Code: RV1H-G-D12

  • Compact 6 mm DIN rail mount design
  • SPDT contact configuration
  • Operates at 12 VDC coil voltage
  • Wide temp range: -40 to 70°C
  • CE, cULus, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RV

Electrical

Actuating Voltage
10.8 V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Pin
Rated Current (In)
0.25
Rated Voltage (Ur)
12 V DC
Change-Over Contacts
SPDT

Mechanical

Contact Material
Gold - Plated
Mounting
PCB

Environmental

Operating Temperature
-40ºC ~ 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
