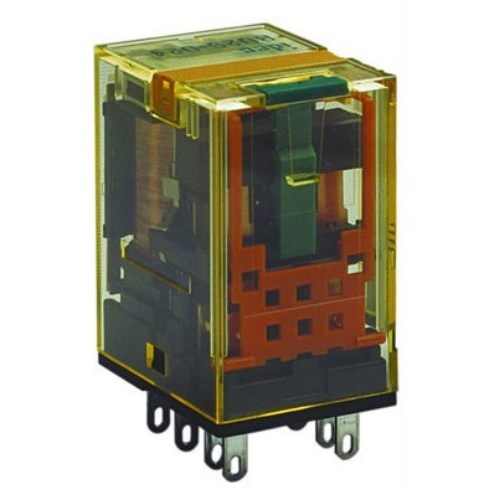

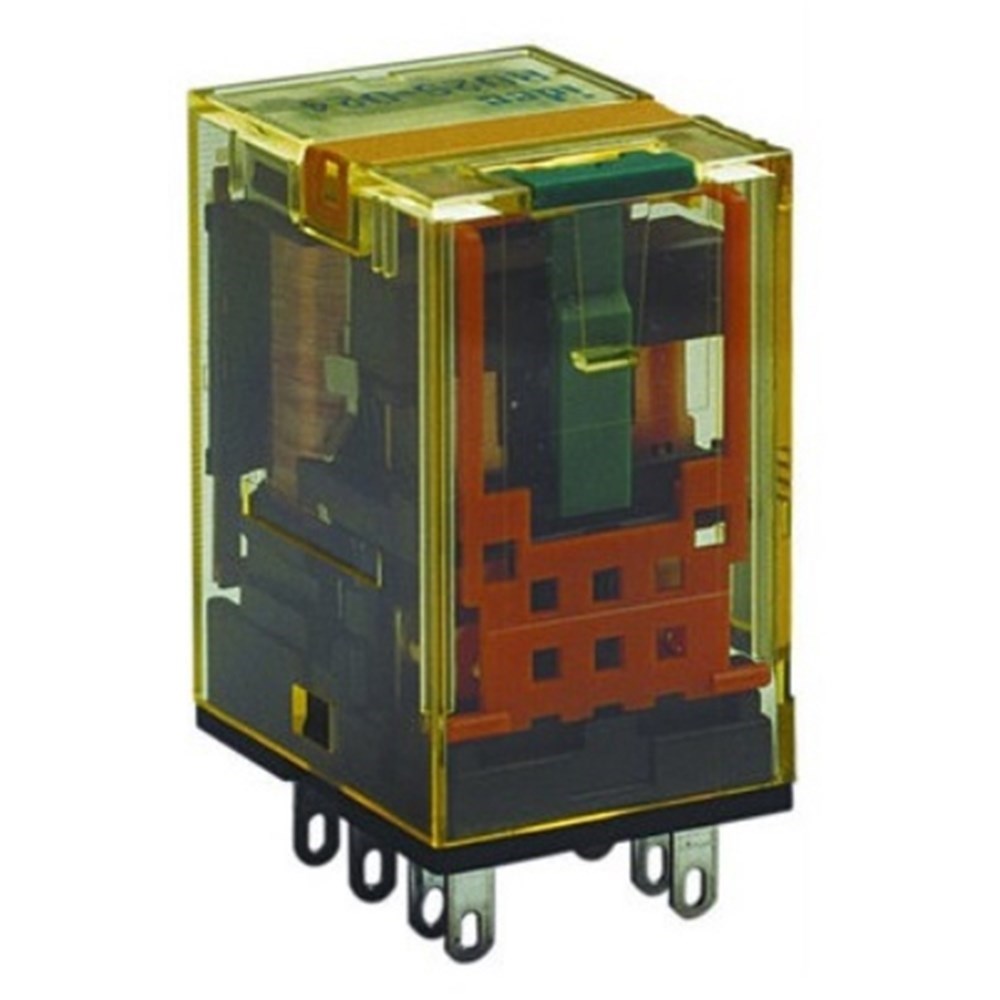

IDEC RU2S-D110 Plug-In Universal Relay W/Latching Lever DPDT 110VDC Coil 10A

Product Code: RU2S-D110

  • Universal relay with 10 A rated current
  • DPDT contact config with silver alloy material
  • Plug-in terminal for easy installation
  • High mechanical life: 10 million operations
  • CE, CSA, Lloyd Register, UKCA certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Relay
Brand
IDEC
Series
RU

Electrical

Actuating Voltage
88 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade Terminal
Rated Current (In)
0.416667
Rated Voltage (Ur)
110 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Silver alloy
Mounting
With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)

Dimensions & Physical Data

Depth
35.6 mm
Height
27.5 mm
Width
21 mm

Environmental

Operating Temperature
–55 to +60°C (no freezing)

Documents

IPD Product Catalogue V17
