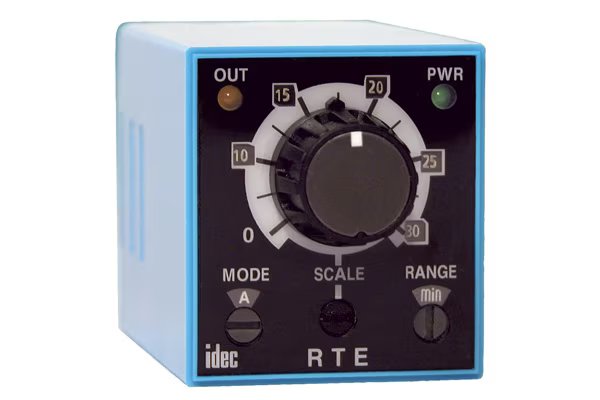

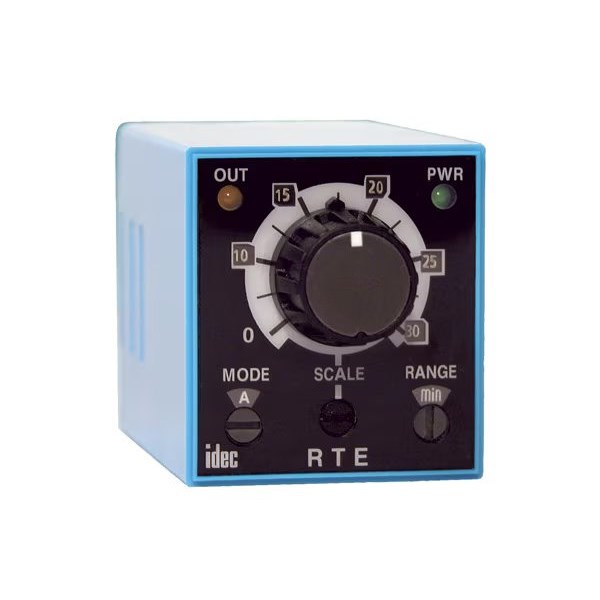

IDEC RTE-B2AF20 Analog Timer 20VAC

Product Code: RTE-B2AF20

  • Compact size: 36mm x 40mm x 74.9mm
  • Long electrical life: 500,000 operations
  • High mechanical durability: 50 million ops
  • IP40 protection against solid objects
  • Wide temp range: -20 to 65°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Timer
Brand
IDEC
Series
RTE

Electrical

Timing Range
0.1sec to 600 hours
Rated Voltage (Ur)
100-240V AC(50/60Hz)

Dimensions & Physical Data

Depth
85.2mm
Height
40mm
Width
36mm

Environmental

Operating Temperature without Derating
-20 to +65°C (without freezing)
IP Rating
IP40 (enclosure) (IEC60529)

Documents

IPD Product Catalogue V17
