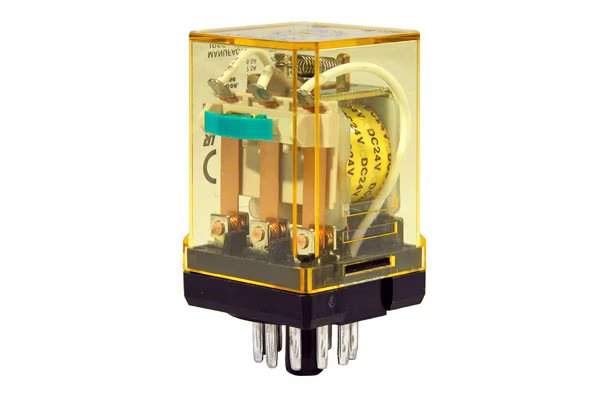

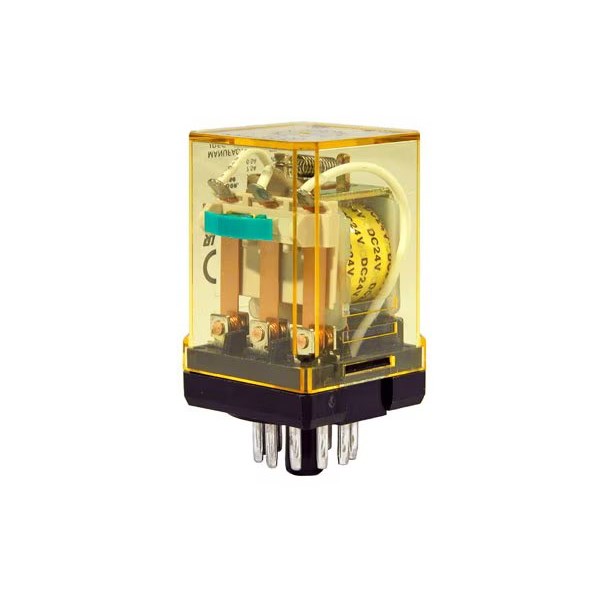

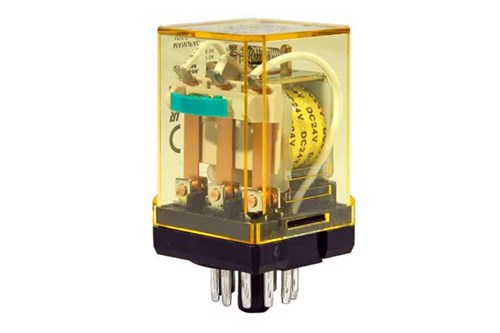

IDEC RR3PA-ULDC110 Power Relay 3PDT 110VDC Coil 10A Pin Terminal

Product Code: RR3PA-ULDC110

  • Rated Voltage: 110 VDC, Current: 10 A
  • Contact Configuration: 3PDT with Silver Material
  • Long Electrical Life: 200,000 Operations
  • High Insulation Resistance of 100 MOhm
  • CE and CSA Approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RR

Electrical

Actuating Voltage
88 V DC
No. of N/C Contacts
3
No. of N/O Contacts
3
Electrical Connection
Pin
Rated Current (In)
0.416667
Rated Voltage (Ur)
110 V DC (Coil)
Change-Over Contacts
3PDT

Mechanical

Contact Material
Silver
Mounting
With Socket (DIN Rail/Surface/Panel Mount)

Dimensions & Physical Data

Depth
35.6 mm
Height
68.5 mm
Width
35.6 mm

Environmental

Operating Temperature
–25 to +40°C (no freezing)

Documents
