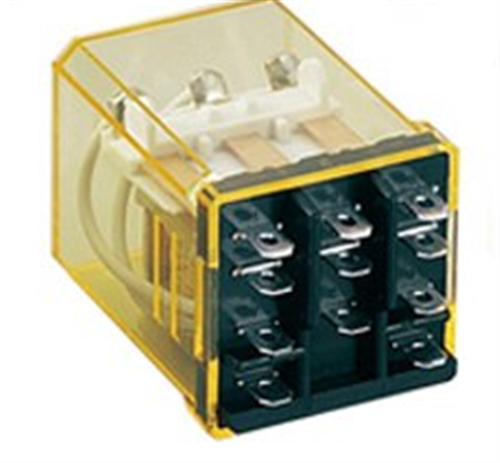

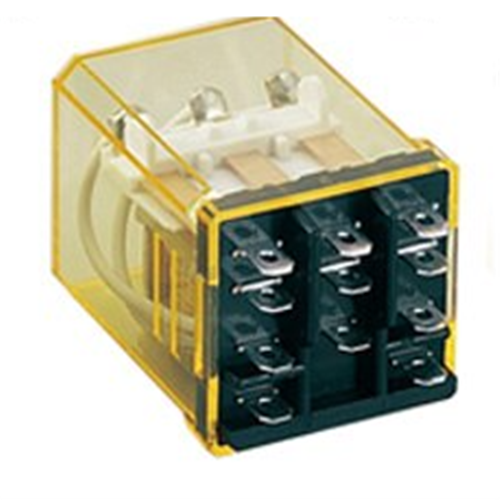

IDEC RR3PA-UAC110 Power Relay 3PDT 110VAC Coil 10A Pin Terminal

Product Code: RR3PA-UAC110

  • 3PDT contact config with 11-pin terminal
  • Rated for 110 VAC, 10 A, and 1.5 W
  • Durable: 200k electrical ops, 10M mechanical ops
  • CE and CSA approved for safety compliance
  • Operates in -25 to 40°C temp range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RR

Electrical

Actuating Voltage
88 V AC
No. of N/C Contacts
3
No. of N/O Contacts
3
Electrical Connection
Pin
Rated Current (In)
0.416667
Rated Voltage (Ur)
110 V AC (Coil)
Change-Over Contacts
3PDT

Mechanical

Contact Material
Silver
Mounting
With Socket (DIN Rail/Surface/Panel Mount)

Dimensions & Physical Data

Depth
35.6 mm
Height
68.5 mm
Width
35.6 mm

Environmental

Operating Temperature
–25 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
