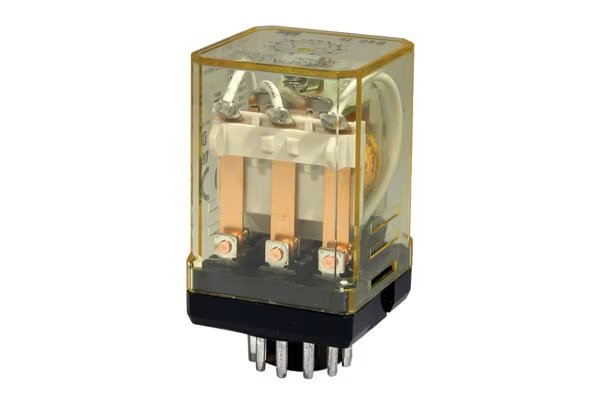

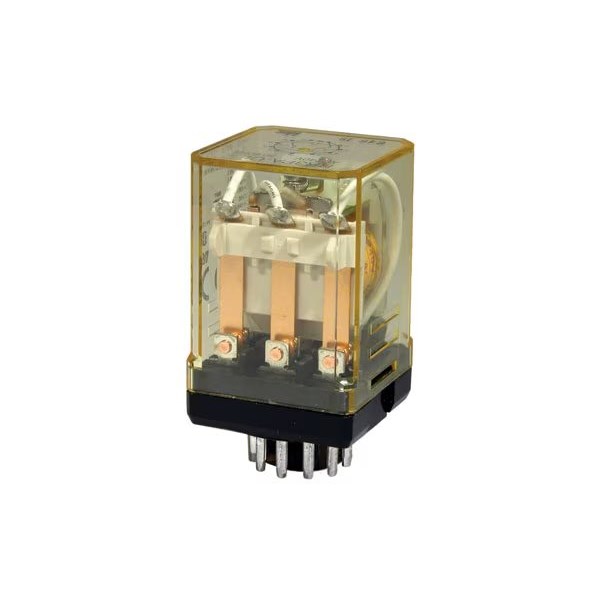

IDEC RR3P-ULAC12V Power Relay 3PDT 12VAC Coil Pin Terminal

Product Code: RR3P-ULAC12V

  • Rated voltage of 12 VAC
  • 3PDT contact configuration
  • Silver contact material for durability
  • Long electrical life: 200,000 operations
  • CE and CSA approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RR

Electrical

Actuating Voltage
9.6 V AC
No. of N/C Contacts
3
No. of N/O Contacts
3
Electrical Connection
Pin
Rated Current (In)
0.416667
Rated Voltage (Ur)
12 V AC (Coil)
Change-Over Contacts
3PDT

Mechanical

Contact Material
Silver
Mounting
With Socket (DIN Rail/Surface/Panel Mount)

Dimensions & Physical Data

Depth
35.6 mm
Height
68.5 mm
Width
35.6 mm

Environmental

Operating Temperature
–25 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
