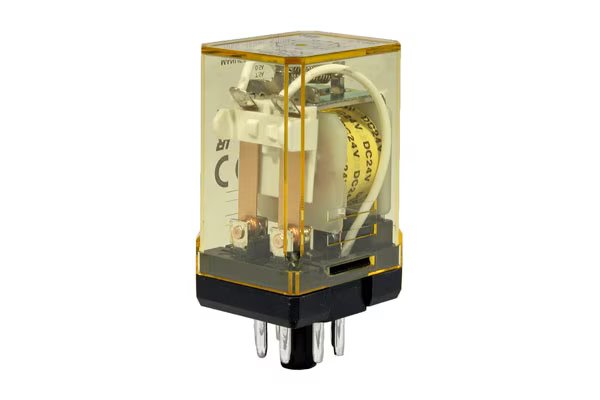

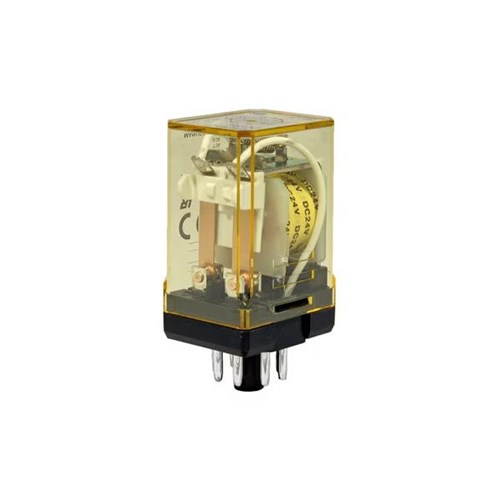

IDEC RR2P-ULAC12 Power Relay DPDT 12VAC Coil 10A Pin Terminal

Product Code: RR2P-ULAC12

  • 12 VAC, 10 A DPDT power relay
  • Silver contacts for reliable performance
  • Long electrical life: 200,000 ops
  • CE and CSA approved for safety
  • Operates in -25 to 40°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RR

Electrical

Actuating Voltage
9.6 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Pin
Rated Current (In)
0.416667
Rated Voltage (Ur)
12 V AC (Coil)
Change-Over Contacts
DPDT

Mechanical

Contact Material
Silver
Mounting
With Socket (DIN Rail/Surface/Panel Mount)

Dimensions & Physical Data

Depth
35.6 mm
Height
68 mm
Width
28.6 mm

Environmental

Operating Temperature
–25 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
