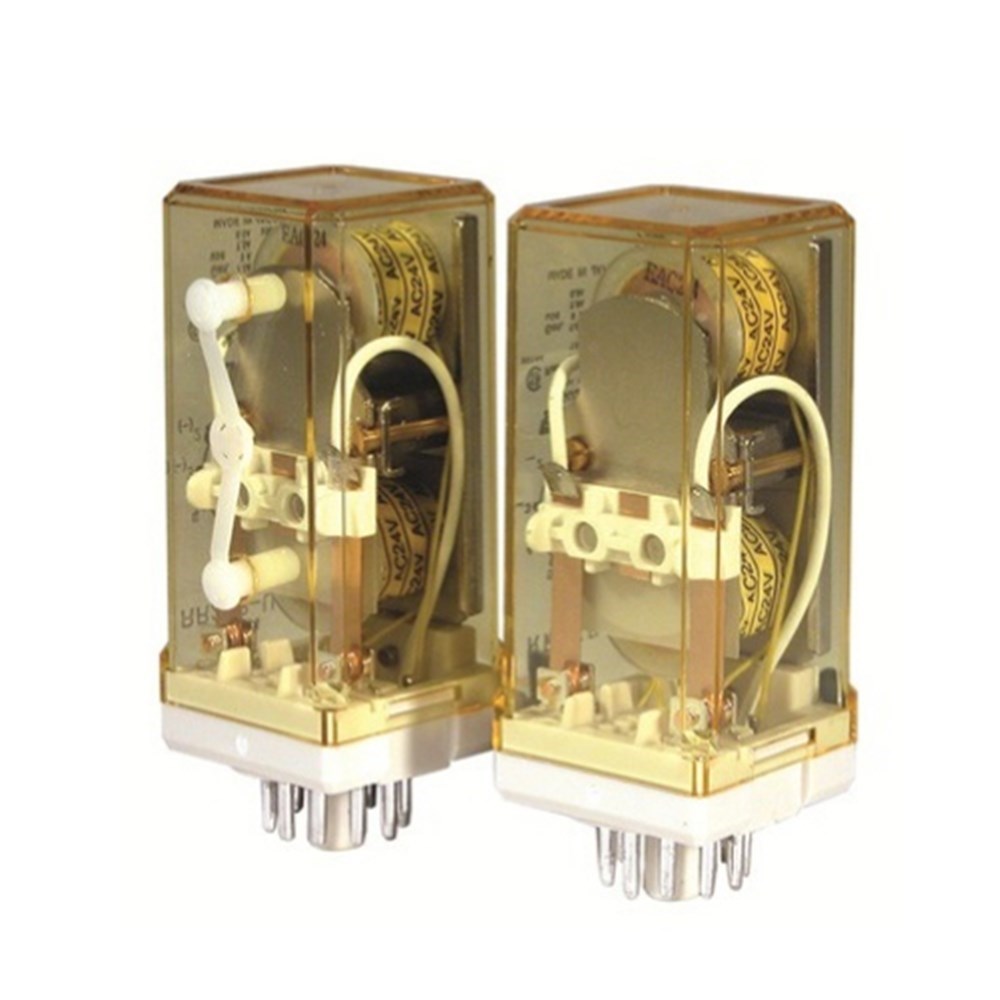

IDEC RR2KP-UDC24 Latching Relay DPDT 24VAC Coil 10A Pin Terminal

Product Code: RR2KP-UDC24

  • Latching relay with DPDT contact config
  • Handles up to 10 A current
  • Operates on 24 VDC coil voltage
  • Silver contacts ensure reliable conductivity
  • CSA and UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Latch Relay
Brand
IDEC
Series
RR2KP

Electrical

Actuating Voltage
24 V DC
No. of N/C Contacts
0
No. of N/O Contacts
0
Nominal Current (In)
60 mA
Electrical Connection
Pin terminal
Rated Current (In)
0.416667
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
2

Mechanical

Contact Material
Silver
Mounting
Socket mount

Dimensions & Physical Data

Depth
36 mm
Height
80.5 mm
Width
36 mm

Environmental

Operating Temperature
-5 to 40 degC

Documents

IPD Product Catalogue V17
