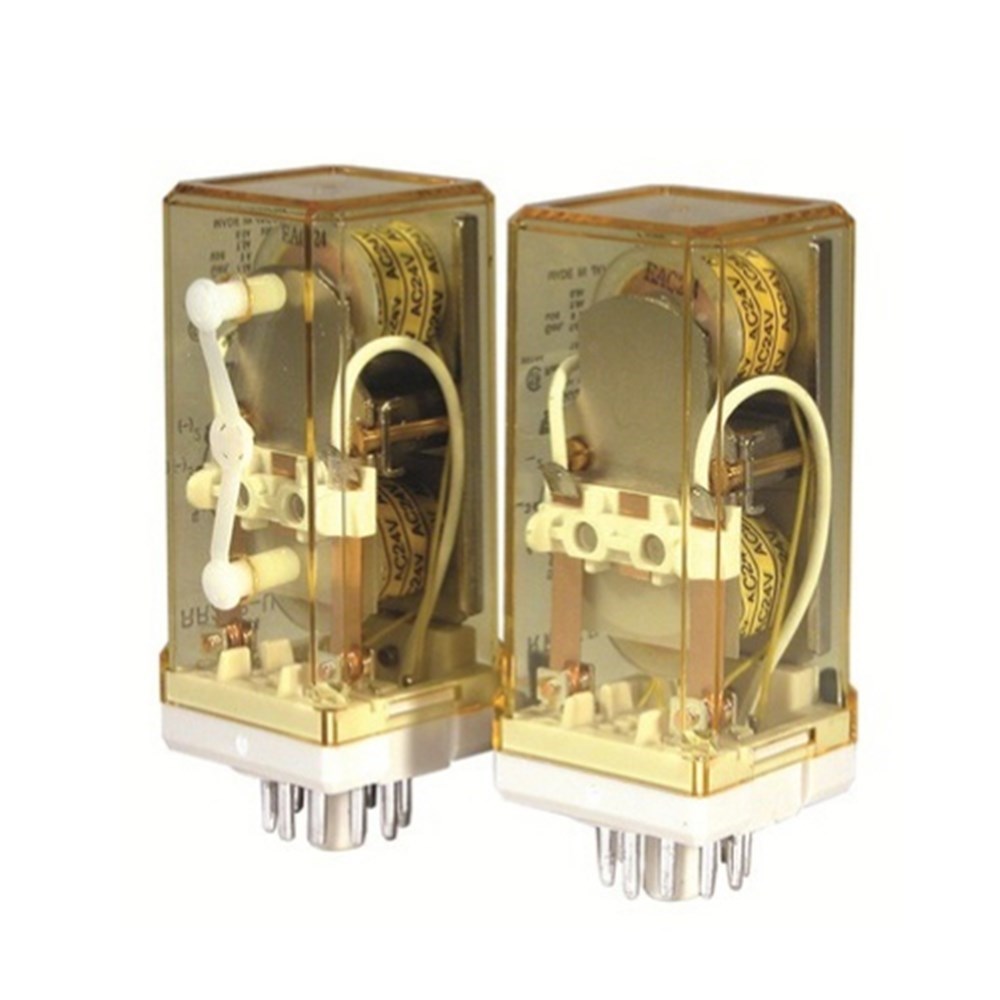

IDEC RR2KP-UDC110 Latching Relay DPDT 110VDC Coil 10A Pin Terminal

Product Code: RR2KP-UDC110

  • Latching relay with DPDT contacts
  • Handles up to 10A current
  • Operates at 110 VDC coil voltage
  • Silver contact material ensures durability
  • CSA and UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Latch Relay
Brand
IDEC
Series
RR2KP

Electrical

Actuating Voltage
110 V DC
No. of N/C Contacts
0
No. of N/O Contacts
0
Nominal Current (In)
13.8 mA
Electrical Connection
Pin terminal
Rated Current (In)
0.416667
Rated Voltage (Ur)
110 V DC
Change-Over Contacts
2

Mechanical

Contact Material
Silver
Mounting
Socket mount

Dimensions & Physical Data

Depth
36 mm
Height
80.5 mm
Width
36 mm

Environmental

Operating Temperature
-5 to 40 degC

Documents

IPD Product Catalogue V17
