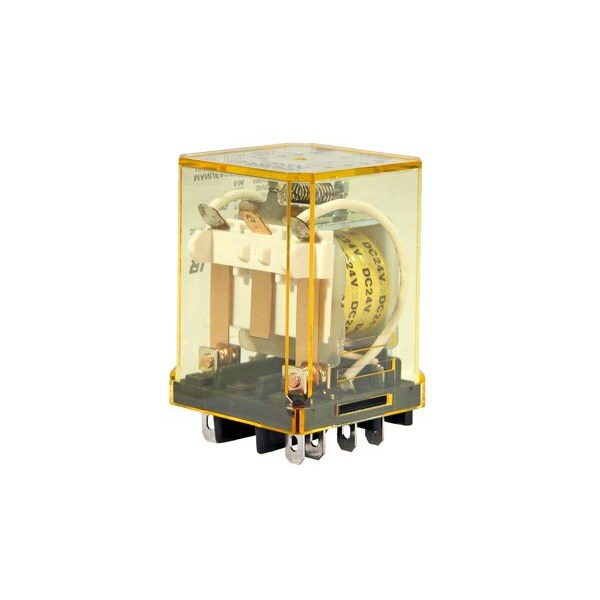

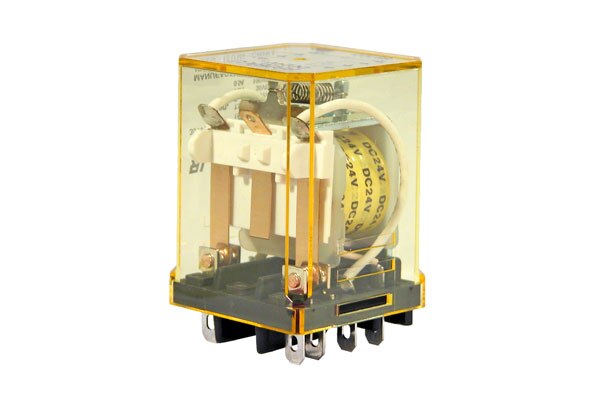

IDEC RR2BA-UDC12 Power Relay DPDT 12VDC Coil 10A Blade Terminal

Product Code: RR2BA-UDC12

  • Rated for 12 VDC and 10 A
  • DPDT contact config with blade terminals
  • Silver contacts ensure durability
  • 200,000 electrical operations lifespan
  • CE and CSA approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RR

Electrical

Actuating Voltage
9.6 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.416667
Rated Voltage (Ur)
12 V DC (Coil)
Change-Over Contacts
DPDT

Mechanical

Contact Material
Silver
Mounting
With Socket (DIN Rail/Surface/Panel Mount)

Dimensions & Physical Data

Depth
36 mm
Height
54.8 mm
Width
36 mm

Environmental

Operating Temperature
–25 to +40°C (no freezing)

Documents

IPD Product Catalogue V17
