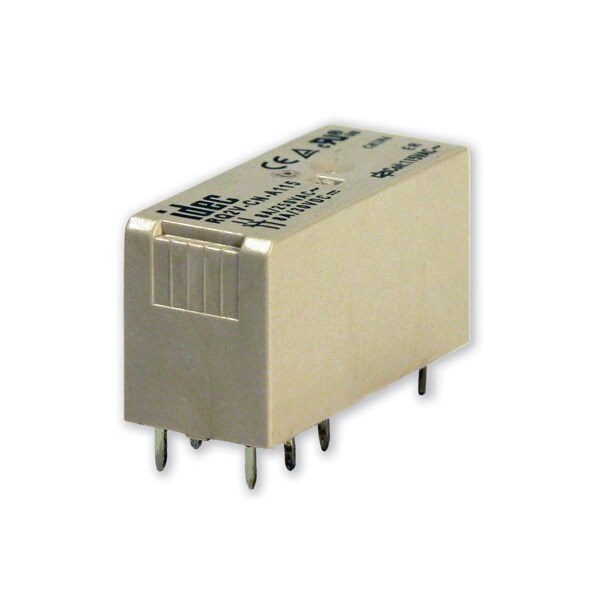

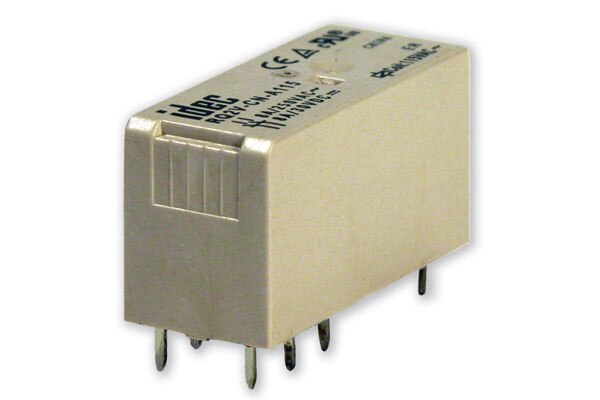

IDEC RQ2V-CN-A230 PCB Relay DPDT 230VAC Coil 2-Pole 8A

Product Code: RQ2V-CN-A230

  • Rated current of 8 A, coil voltage at 230 VAC
  • Compact size: W 12.7 mm, H 29 mm, D 15 mm
  • Long electrical life: 100,000 operations
  • Durable with mechanical life of 10 million ops
  • CE, cRuUS, UL recognized for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RQ

Electrical

Actuating Voltage
184 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
PCB Pin Terminal
Rated Current (In)
0.333333
Rated Voltage (Ur)
230 V AC
Change-Over Contacts
DPDT

Mechanical

Mounting
PCB

Dimensions & Physical Data

Depth
29 mm
Height
15 mm
Width
12.7 mm

Documents

IPD Product Catalogue V17
