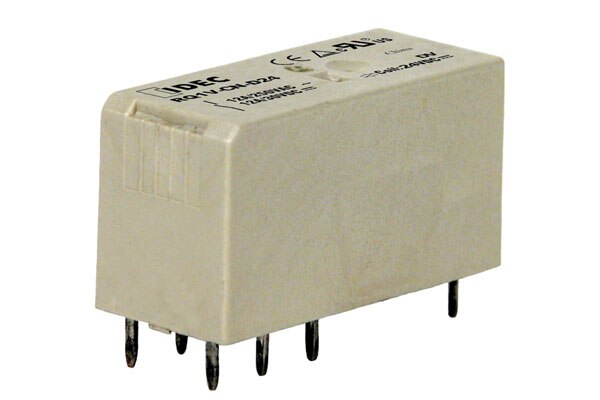

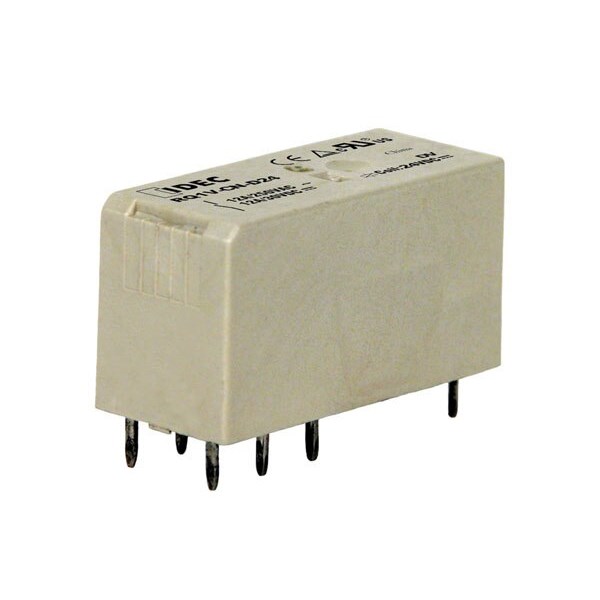

IDEC RQ1V-CM-D24 PCB Relay SPDT 24VDC Coil 1-Pole 12A

Product Code: RQ1V-CM-D24

  • Compact size: 12.7 mm width, 29 mm height
  • Durable with 100k electrical operations
  • Silver nickel alloy contacts for reliability
  • Operates in -40 to 85°C temperature range
  • CE, cRuUS, UL recognized for compliance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RQ

Electrical

Actuating Voltage
19.2 V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
PCB Pin Terminal
Rated Current (In)
0
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
SPDT

Mechanical

Mounting
PCB

Dimensions & Physical Data

Depth
29 mm
Height
15 mm
Width
12.7 mm

Documents

IPD Product Catalogue V17
