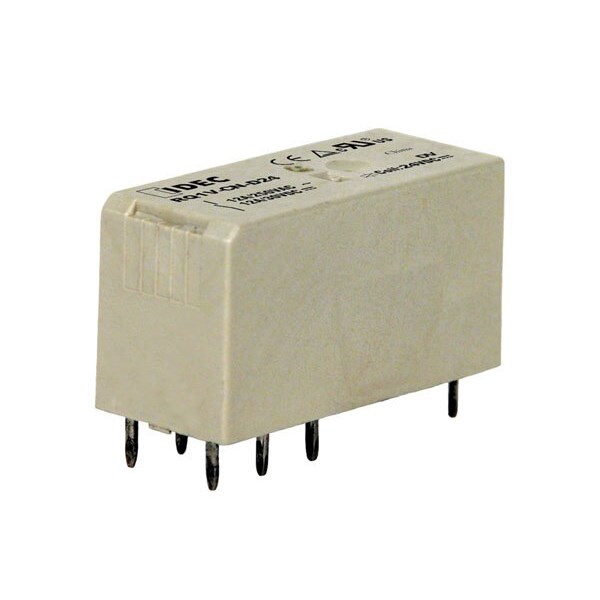

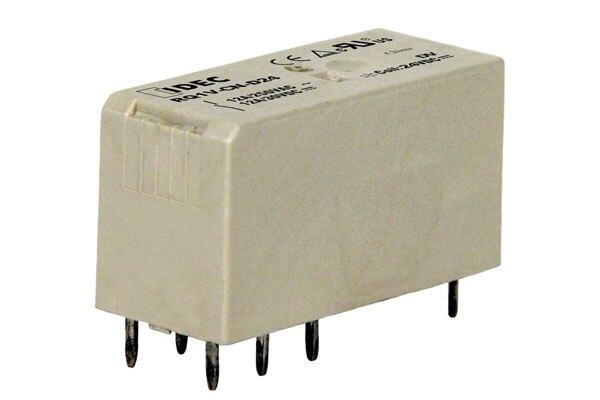

IDEC RQ1V-CM-D12 PCB Relay SPDT 12VDC Coil 1-Pole 12A

Product Code: RQ1V-CM-D12

  • Compact design: 12.7 mm wide, 29 mm high
  • Reliable SPDT contact configuration
  • Durable with 100k operations electrical life
  • Withstands -40 to 85°C operational range
  • Certified with CE, cRuUS, UL approvals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RQ

Electrical

Actuating Voltage
9.6 V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
PCB Pin Terminal
Rated Current (In)
0
Rated Voltage (Ur)
12 V DC
Change-Over Contacts
SPDT

Mechanical

Mounting
PCB

Dimensions & Physical Data

Depth
29 mm
Height
15 mm
Width
12.7 mm

Documents

IPD Product Catalogue V17
