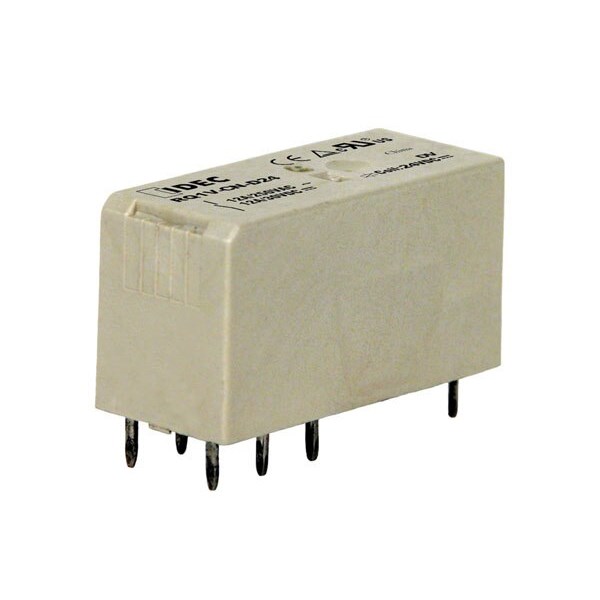

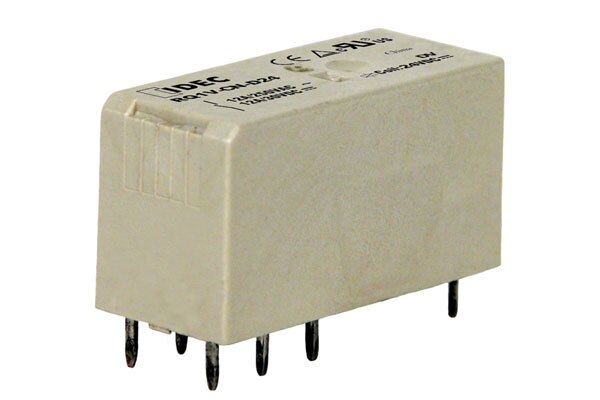

IDEC RQ1V-CH-D24 PCB Relay SPDT 24VDC Coil 1-Pole 16A

Product Code: RQ1V-CH-D24

  • Compact size: 12.7mm wide, 29mm high, 15mm deep
  • SPDT contact with silver nickel alloy
  • Rated for 16A current and 24VDC coil voltage
  • Long lifespan: 100k electrical, 10M mechanical ops
  • CE, cRuUS, UL recognized standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RQ

Electrical

Actuating Voltage
19.2V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
PCB Pin Terminal
Rated Current (In)
16A
Rated Voltage (Ur)
24V DC
Change-Over Contacts
SPDT

Mechanical

Mounting
PCB

Dimensions & Physical Data

Depth
29mm
Height
15mm
Width
12.7mm

Documents

IPD Product Catalogue V17
