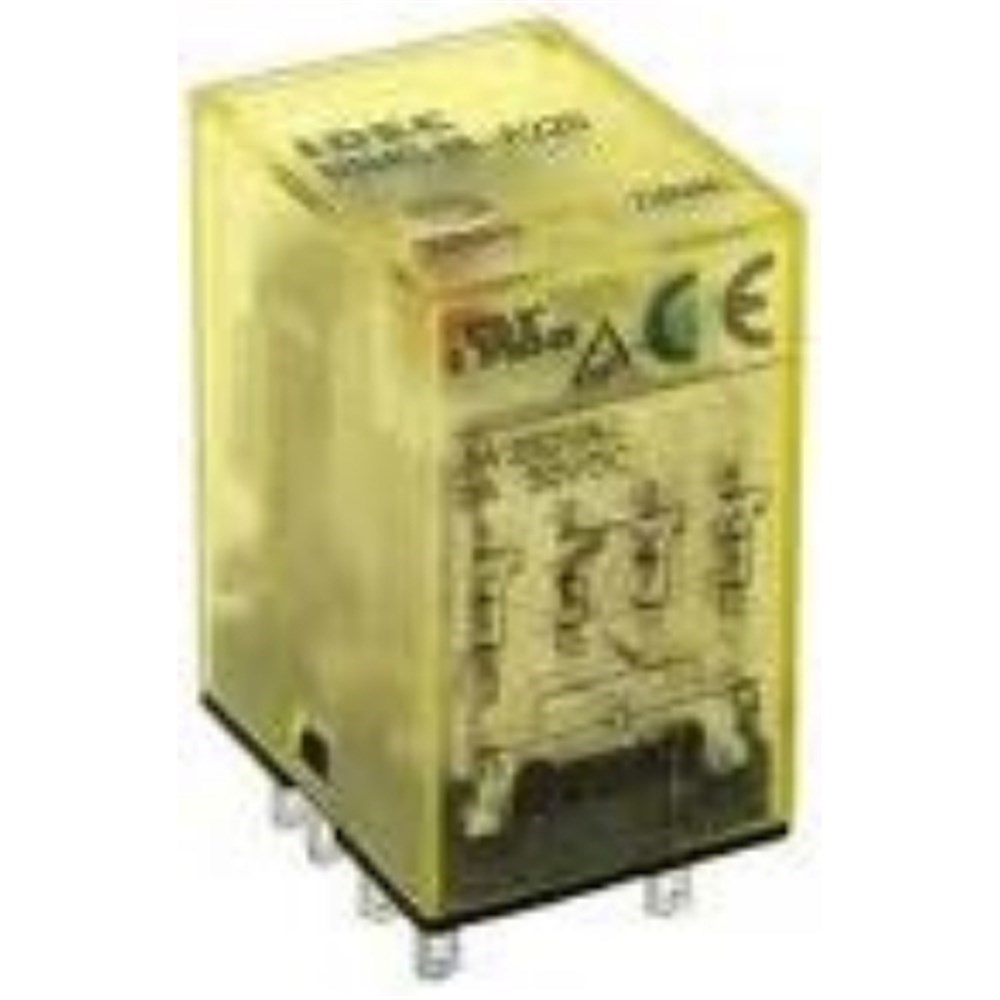

IDEC RN4S-NL-D12 Miniature Power Relay 4PDT 12VDC Coil

Product Code: RN4S-NL-D12

  • 12 VDC, 0.9 W power rating
  • 4PDT contact configuration
  • Ag Alloy contact material
  • Electrical life: 100k operations
  • Operating temp: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RN

Electrical

Actuating Voltage
9.6 V DC
No. of N/C Contacts
4
No. of N/O Contacts
4
Electrical Connection
Blade
Rated Current (In)
0.125
Rated Voltage (Ur)
12 V DC (Coil)
Change-Over Contacts
4PDT

Mechanical

Contact Material
Ag Alloy
Mounting
With Socket (DIN Rail/PCB)

Dimensions & Physical Data

Depth
28 mm
Height
36 mm
Width
21.5 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)

Documents

IPD Product Catalogue V17
