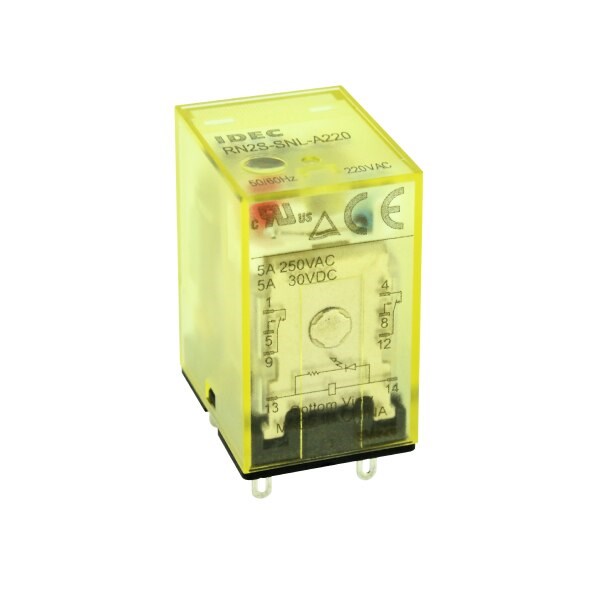

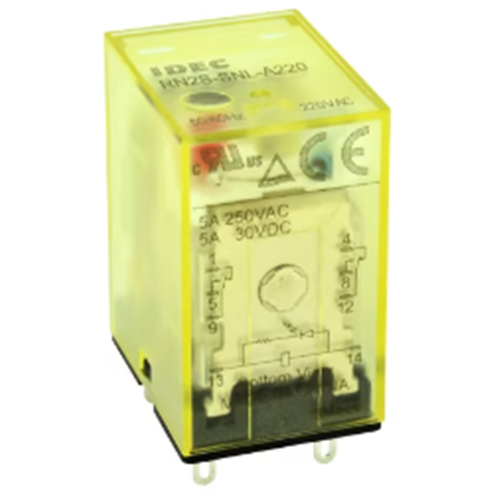

IDEC RN2S-NL-A220 Miniature Power Relay DPDT 220VAC Coil 5A

Product Code: RN2S-NL-A220

  • Rated for 220 VAC and 5 A
  • Durable with 1 million electrical ops
  • Reliable DPDT contact configuration
  • Operates in -40 to 70°C temperature range
  • Certified CE, cRUus compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RN

Electrical

Actuating Voltage
176 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.208333
Rated Voltage (Ur)
220 V AC (Coil)
Change-Over Contacts
DPDT

Mechanical

Contact Material
Ag Alloy
Mounting
With Socket (DIN Rail/PCB)

Dimensions & Physical Data

Depth
28 mm
Height
36 mm
Width
21.5 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)

Documents

IPD Product Catalogue V17
