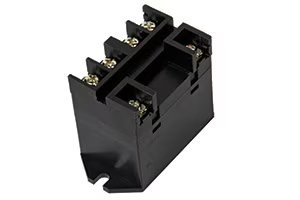

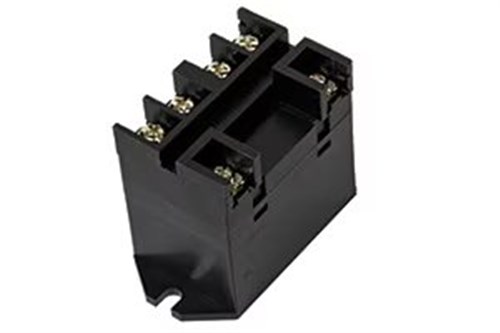

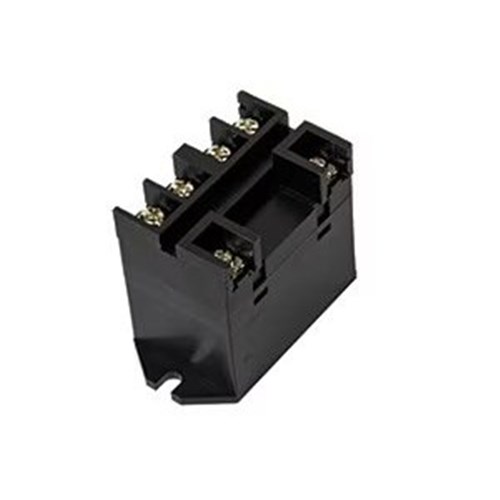

IDEC RL2N-T-D24 Power Relay 2 DPST 24VDC Coil 25A Screw Terminal

Product Code: RL2N-T-D24

  • 24 VDC, 25 A rated for efficient power handling
  • Flange mount with screw terminals for easy install
  • Durable Ag alloy contacts with 1M operations lifespan
  • IP40 protection against solid objects over 1mm
  • Certified: CE, cRuUS, RoHS, VDE compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RL

Electrical

Actuating Voltage
19.2V DC
No. of N/O Contacts
4
Electrical Connection
Screw Terminal
Rated Current (In)
25A
Rated Voltage (Ur)
24V DC (Coil)
Change-Over Contacts
DPST

Mechanical

Contact Material
Ag Alloy
Mounting
Flange

Dimensions & Physical Data

Depth
54mm
Height
53.4mm
Width
50mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40

Documents

IPD Product Catalogue V17
