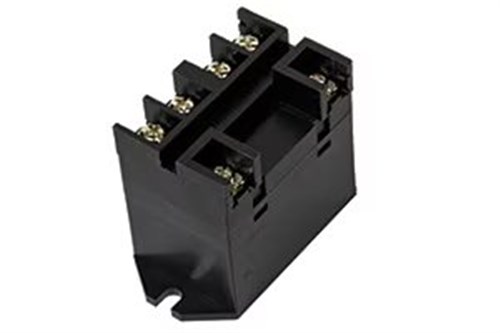

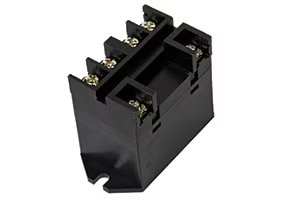

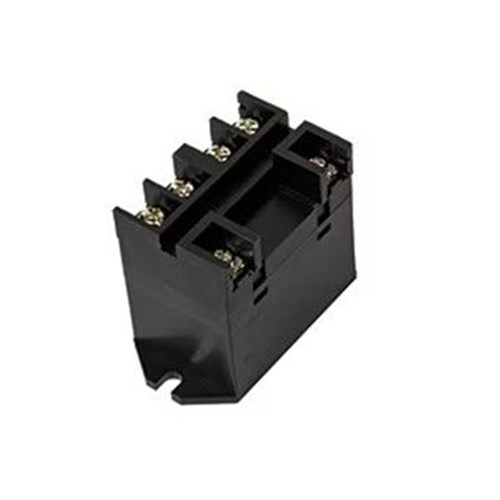

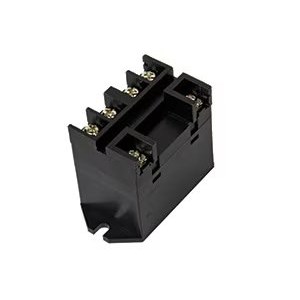

IDEC RL2N-T-D12 Power Relay 2 DPST 12VDC Coil 25A Screw Terminal

Product Code: RL2N-T-D12

  • Rated for 12 VDC, 25 A, and 1.9 W
  • Durable with 1M mechanical operations
  • Flange mount with screw terminals
  • IP40 protection against solid objects
  • CE, cRuUS, RoHS, VDE certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RL

Electrical

Actuating Voltage
9.6V DC
No. of N/O Contacts
4
Electrical Connection
Screw Terminal
Rated Current (In)
25A
Rated Voltage (Ur)
12V DC (Coil)
Change-Over Contacts
DPST

Mechanical

Contact Material
Ag Alloy
Mounting
Flange

Dimensions & Physical Data

Depth
54mm
Height
53.4mm
Width
50mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40
