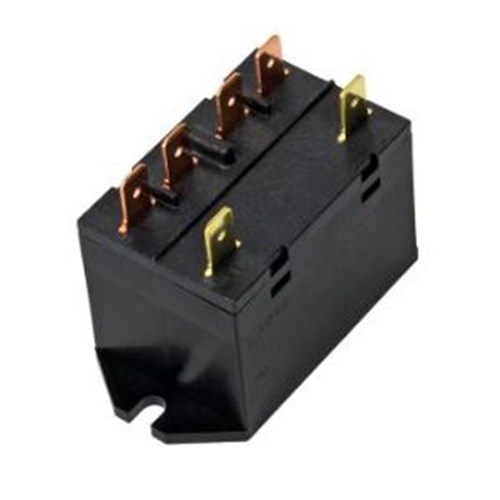

IDEC RL2B-T-A100 Power Relay 2 DPST 100-120VAC Coil 25A Quick Connect Terminal

Product Code: RL2B-T-A100

  • Rated for 100-120 VAC, 25 A
  • Quick connect terminals for easy setup
  • Durable Ag alloy contacts
  • Flange mounting for secure installation
  • CE, cRuUS, RoHS, VDE certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RL

Electrical

Actuating Voltage
80V AC - 96V AC
No. of N/O Contacts
4
Electrical Connection
Quick Connect Terminal
Rated Current (In)
25A
Rated Voltage (Ur)
100V AC - 120V AC (Coil)
Change-Over Contacts
DPST

Mechanical

Contact Material
Ag Alloy
Mounting
Flange

Dimensions & Physical Data

Depth
54mm
Height
39.5mm
Width
50mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40

Documents

IPD Product Catalogue V17
