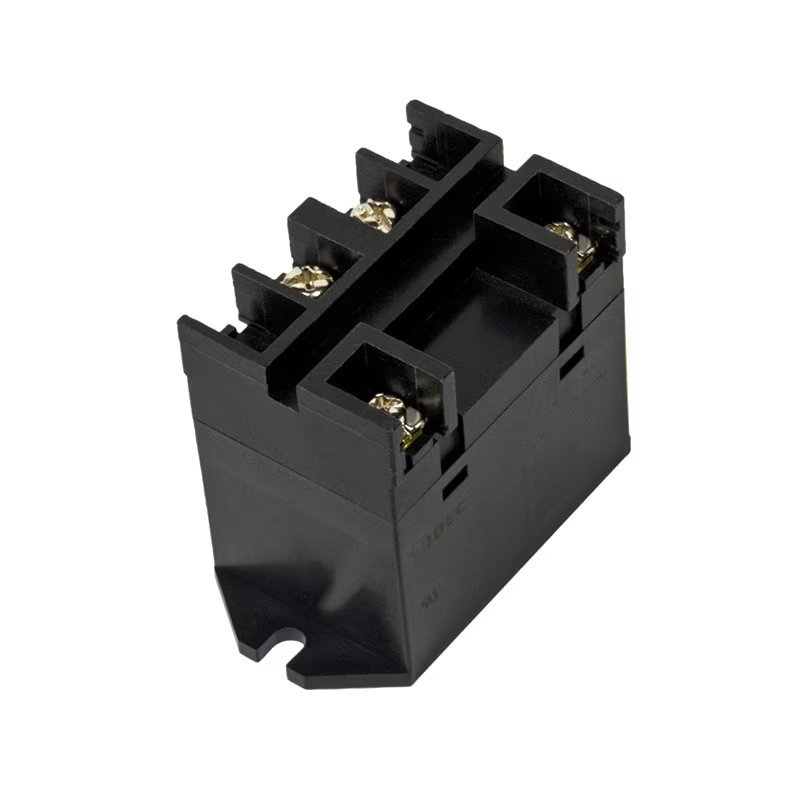

IDEC RL1N-T-A100 Power Relay 1x (SPST Double Make) 100-120VAC Coil 30A Screw Terminal

Product Code: RL1N-T-A100

  • Rated for 100-120 VAC, 30 A
  • SPST double make contact config
  • Flange mounting with screw terminals
  • Durable Ag alloy contacts
  • CE, cRuUS, RoHS, VDE certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RL

Electrical

Actuating Voltage
80V AC - 96V AC
No. of N/O Contacts
2
Electrical Connection
Screw Terminal
Rated Current (In)
30A
Rated Voltage (Ur)
100V AC - 120V AC (Coil)
Change-Over Contacts
SPST

Mechanical

Contact Material
Ag Alloy
Mounting
Flange

Dimensions & Physical Data

Depth
54mm
Height
53.4mm
Width
50mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40

Documents

IPD Product Catalogue V17
