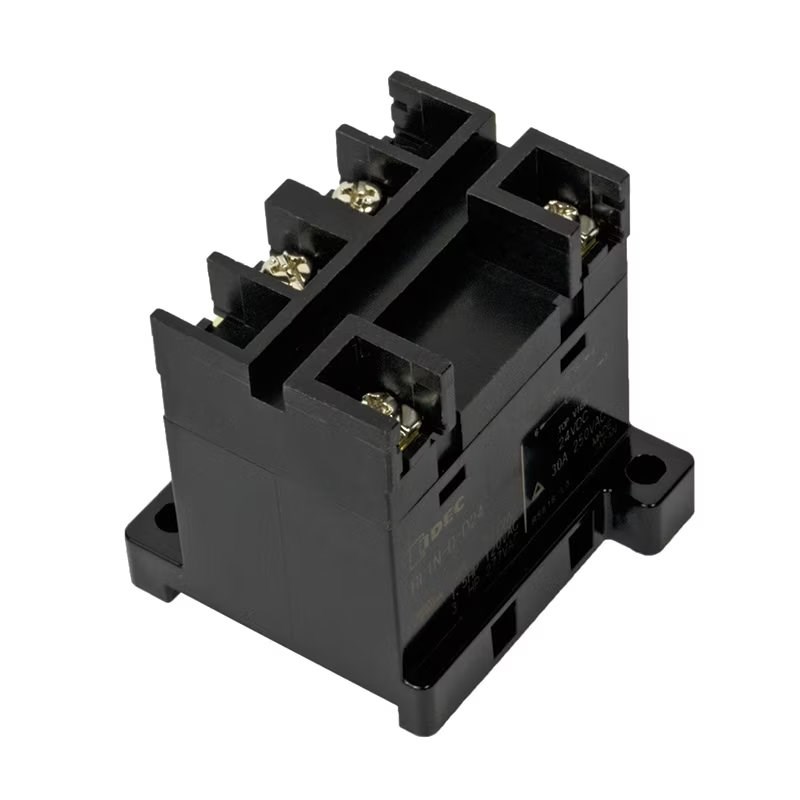

IDEC RL1N-D-A200 Power Relay 1x (SPST Double Make) 200-240VAC Coil 30A Screw Terminal

Product Code: RL1N-D-A200

  • Rated for 200-240 VAC, 30 A
  • DIN rail mounting with screw terminals
  • Fast 30 ms operating time
  • Durable Ag alloy contacts
  • Meets CE, cRuUS, RoHS, VDE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RL

Electrical

Actuating Voltage
160V AC - 192V AC
No. of N/O Contacts
2
Electrical Connection
Screw Terminal
Rated Current (In)
30A
Rated Voltage (Ur)
200V AC - 240V AC (Coil)
Change-Over Contacts
SPST

Mechanical

Contact Material
Ag Alloy
Mounting
DIN Rail

Dimensions & Physical Data

Depth
54mm
Height
53.4mm
Width
50mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40

Documents

IPD Product Catalogue V17
