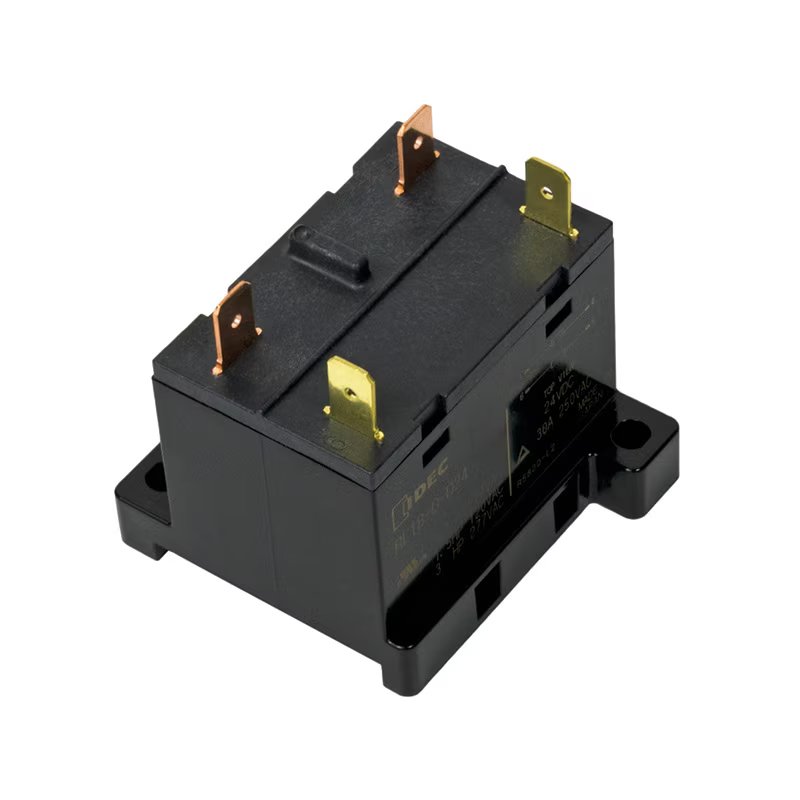

IDEC RL1B-D-D12 Power Relay 1x (SPST Double Make) 12VDC Coil 30A Quick Connect Terminal

Product Code: RL1B-D-D12

  • 12 VDC, 30 A rated power
  • Quick connect terminals for easy setup
  • DIN rail mounting for versatile installation
  • Durable with 1 million operation lifespan
  • IP40 protection against small objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RL

Electrical

Actuating Voltage
9.6V DC
No. of N/O Contacts
2
Electrical Connection
Quick Connect Terminal
Rated Current (In)
30A
Rated Voltage (Ur)
12V DC (Coil)
Change-Over Contacts
SPST

Mechanical

Contact Material
Ag Alloy
Mounting
DIN Rail

Dimensions & Physical Data

Depth
54mm
Height
39.5mm
Width
50mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40

Documents

IPD Product Catalogue V17
