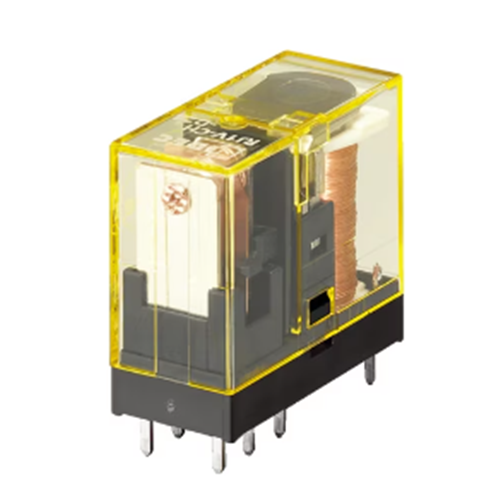

IDEC RJ2V-C-D24 Slim General Purpose Relay DPDT 8A PCB Terminal

Product Code: RJ2V-C-D24

  • Slim line design with compact PCB terminals
  • Handles 8A with a 24VDC coil voltage
  • Durable: 1 million electrical ops, 50M mechanical ops
  • Reliable AgNi contacts for efficient conductivity
  • Wide temp range: -40 to 70°C, IP40 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RJ

Electrical

Actuating Voltage
16.8 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
PCB Pin Terminal
Rated Current (In)
0.333333
Rated Voltage (Ur)
24 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Ag-Ni
Mounting
PCB

Dimensions & Physical Data

Depth
29 mm
Height
29.8 mm
Width
13 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)

Documents

IPD Product Catalogue V17
