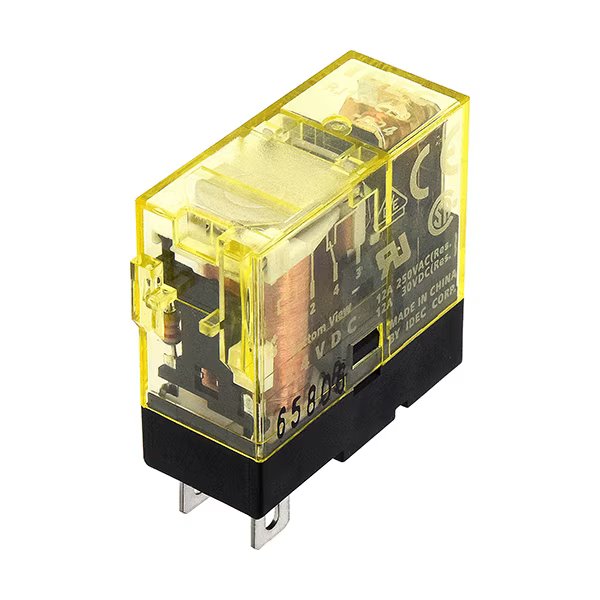

IDEC RJ2S-CLD-D100 Plug-In General Purpose Relay DPDT 8A Blade Terminal

Product Code: RJ2S-CLD-D100

  • Slim Line design with DPDT contact config
  • Rated current of 8 A, coil voltage at 100 VDC
  • Durable silver nickel alloy contacts
  • Long electrical life: 1M operations
  • IP40 protection, operates -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RJ

Electrical

Actuating Voltage
70 V DC - 77 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.333333
Rated Voltage (Ur)
100 -110 V DC (Coil)
Change-Over Contacts
DPDT

Mechanical

Contact Material
AgNi
Mounting
With Socket (DIN Rail/PCB)

Dimensions & Physical Data

Depth
28.8 mm
Height
12.7 mm
Width
27 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)
IP Rating
IP40

Documents

IPD Product Catalogue V17
