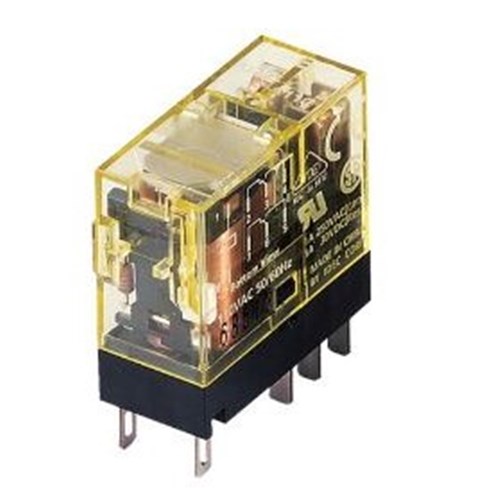

IDEC RJ22V-C-D48 Slim General Purpose Relay DPDT PCB Terminal

Product Code: RJ22V-C-D48

  • Slim Line design for compact spaces
  • DPDT contact configuration
  • 48 VDC coil voltage
  • High electrical life: 200,000 operations
  • Robust mechanical life: 20 million ops
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PCB Relay
Brand
IDEC
Series
RJ

Electrical

Actuating Voltage
33.6 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
PCB Pin Terminal
Rated Current (In)
0.041667
Rated Voltage (Ur)
48 V DC
Change-Over Contacts
DPDT

Mechanical

Contact Material
Ag-Ni+Au
Mounting
PCB

Dimensions & Physical Data

Depth
29 mm
Height
29.8 mm
Width
13 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)

Documents

IPD Product Catalogue V17
