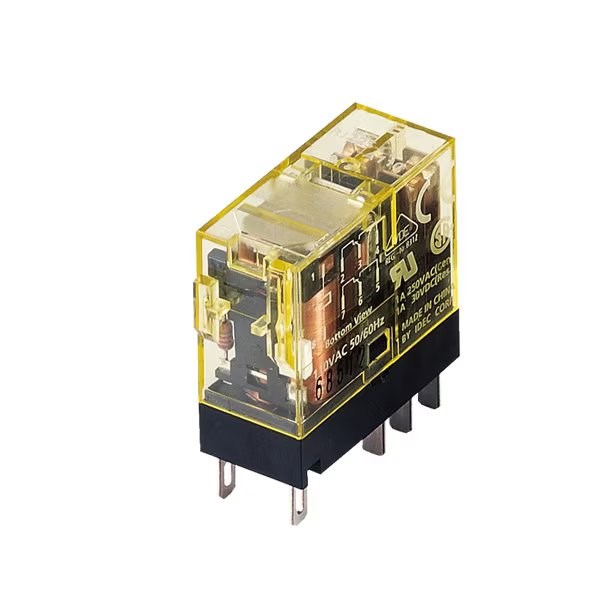

IDEC RJ22S-C-A24 Slim General Purpose Relay DPDT Blade Terminal

Product Code: RJ22S-C-A24

  • Slim Line design with a compact profile
  • DPDT contact config for versatile applications
  • Durable with 1M electrical operations life
  • Operates in temps from -40 to 70°C
  • CE, UL, RoHS compliant for assured quality
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RJ

Electrical

Actuating Voltage
19.2 V AC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Blade
Rated Current (In)
0.333333
Rated Voltage (Ur)
24 V AC (Coil)
Change-Over Contacts
DPDT bifurcated contacts

Mechanical

Contact Material
AgNi (gold clad)
Mounting
With Socket (DIN Rail/PCB)

Dimensions & Physical Data

Depth
28.8 mm
Height
12.7 mm
Width
27 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)
IP Rating
IP40

Documents

IPD Product Catalogue V17
