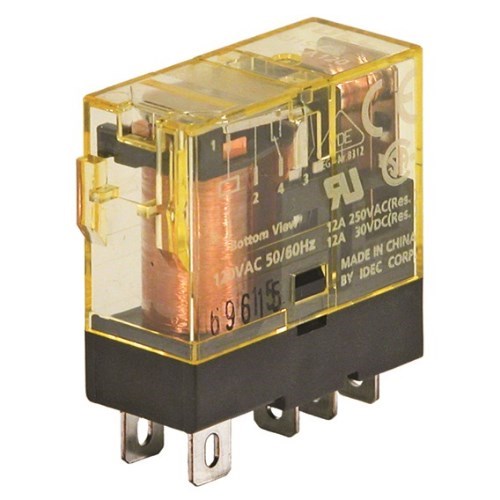

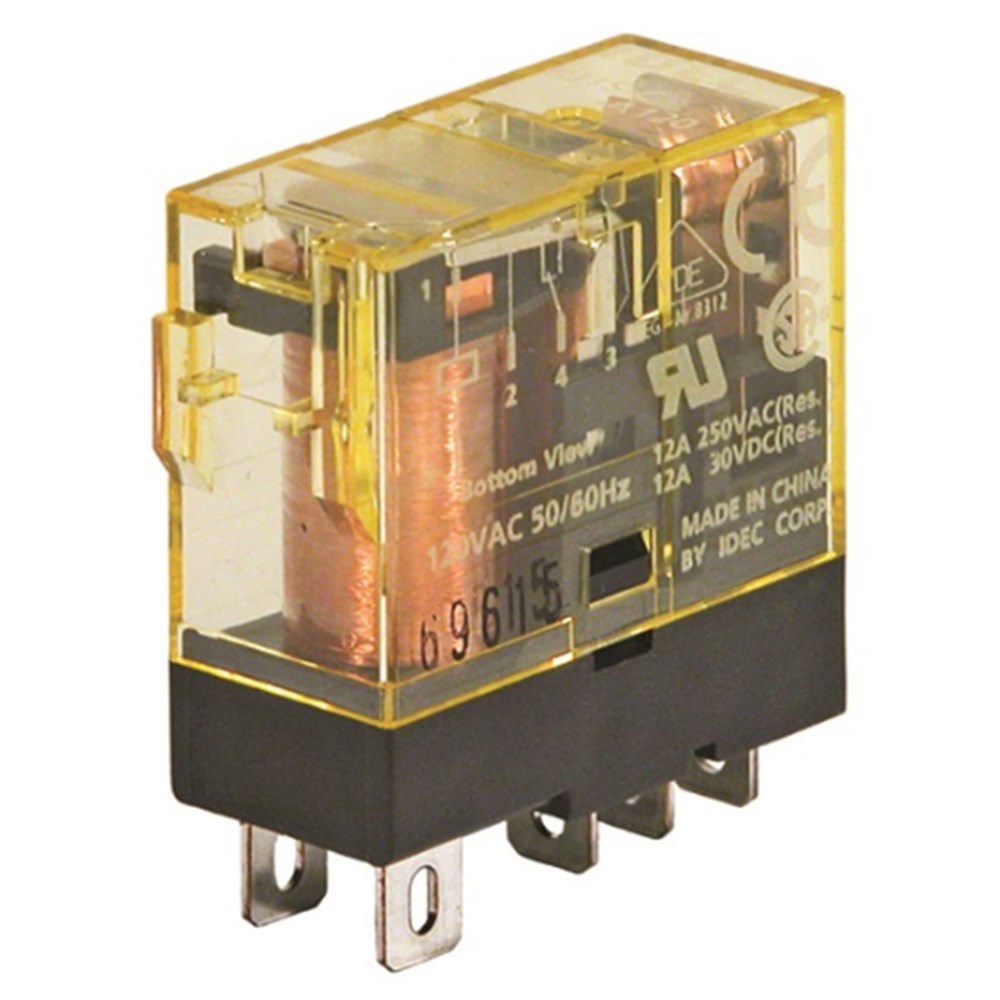

IDEC RJ1S-CL-D12 Slim General Purpose Relay SPDT 12A Plug-In Terminal

Product Code: RJ1S-CL-D12

  • Slim Line design for compact spaces
  • Rated current of 12 A for robust performance
  • SPDT contact configuration with plug-in terminals
  • Long electrical life: 1 million operations
  • Wide temp range: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RJ

Electrical

Actuating Voltage
8.4 V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Blade
Rated Current (In)
0
Rated Voltage (Ur)
12 V DC (Coil)
Change-Over Contacts
SPDT

Mechanical

Contact Material
AgNi
Mounting
With Socket (DIN Rail/PCB)

Dimensions & Physical Data

Depth
28.8 mm
Height
12.7 mm
Width
27 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)
IP Rating
IP40

Documents

IPD Product Catalogue V17
