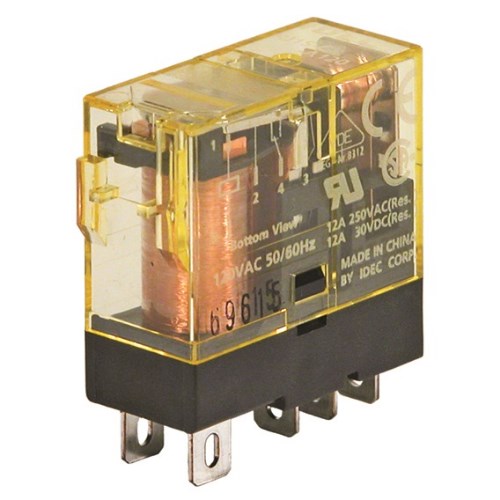

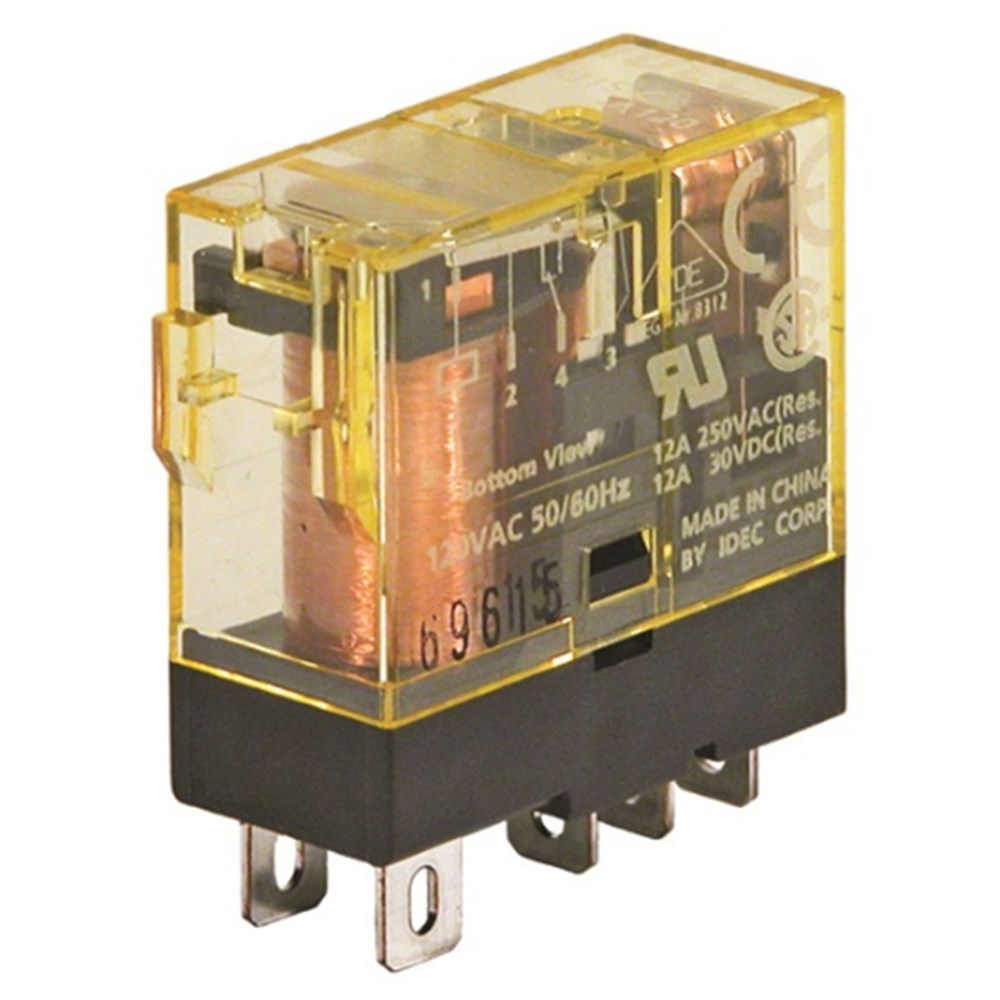

IDEC RJ1S-CL-A24 Slim General Purpose Relay SPDT 12A Plug-In Terminal

Product Code: RJ1S-CL-A24

  • Slim Line design for compact applications
  • SPDT contact configuration with 12 A rating
  • Durable silver nickel alloy contacts
  • IP40 protection, operational temp: -40 to 70°C
  • CE, CSA, Lloyd Register, RoHS, VDE certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RJ

Electrical

Actuating Voltage
19.2 V AC
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Blade
Rated Current (In)
0
Rated Voltage (Ur)
24 V AC (Coil)
Change-Over Contacts
SPDT

Mechanical

Contact Material
AgNi
Mounting
With Socket (DIN Rail/PCB)

Dimensions & Physical Data

Depth
28.8 mm
Height
12.7 mm
Width
27 mm

Environmental

Operating Temperature
–40 to +70°C (no freezing)
IP Rating
IP40
