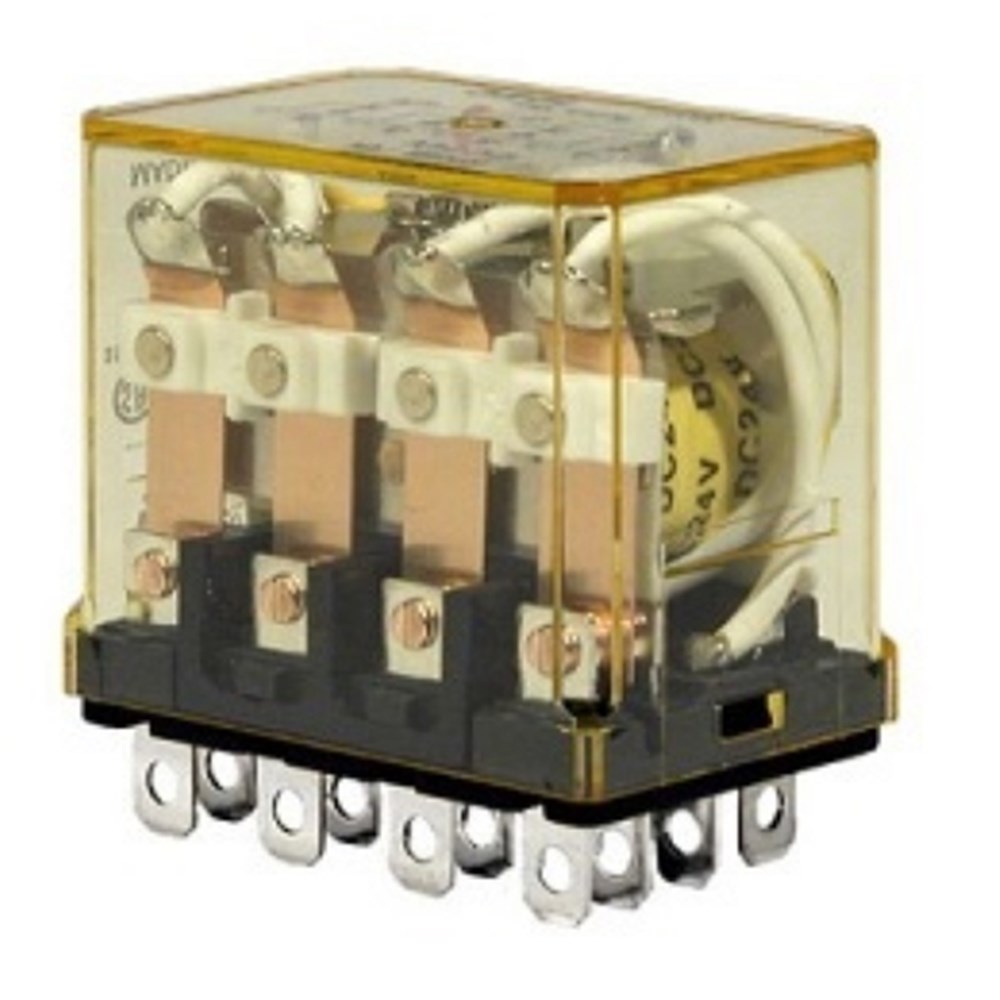

IDEC RH4B-ULDC12 Power Relay 4PDT 12VDC Coil 10A Blade Terminal

Product Code: RH4B-ULDC12

  • 12 VDC, 10 A rated power relay
  • 4PDT blade terminal config
  • Silver Cadmium Oxide contacts
  • CE, CSA, EN, UL approved
  • Long electrical life: 200k operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
4
No. of N/C Contacts
4
No. of N/O Contacts
4
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
12V DC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
41mm

Environmental

Ambient Temperature
-25°C to 40°C

Documents

IPD Product Catalogue V17
